SPECIFICATIONS
Accessories Type: Leverless Controller,Game Keyboards
Arcade Joystick: Arcade Fight Stick
Brand Name: haute42
Compatible Brand/Model: PC
Electric: No
Feature: 12 button with RGB mode
Function: Arcade Fight Stick For PC,Hitbox Fightstick For PS4/PS3
Hign-concerned Chemical: None
Item: hitbox style controller
Leverless Controller Hitbox: mini stickless controller
Model Number: Hautepad M Ultral
Origin: Mainland China
PC System: Windows 10
With USB: YES
hitbox fightstick: mini arcade hitbox
is_customized: NO
joystick hitbox keyboard: Hitbox Controller
joystick hitbox ps4: Arcade controller

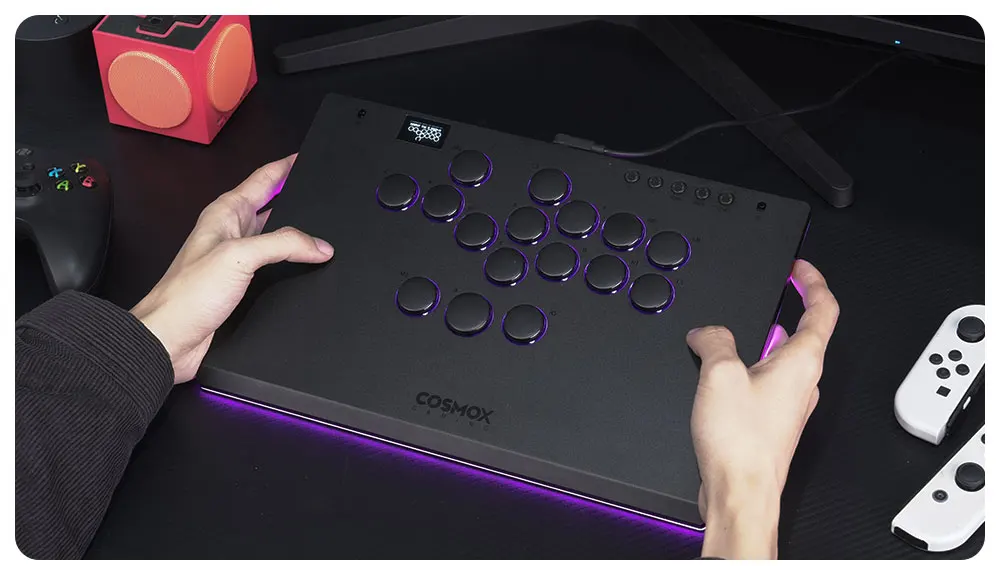

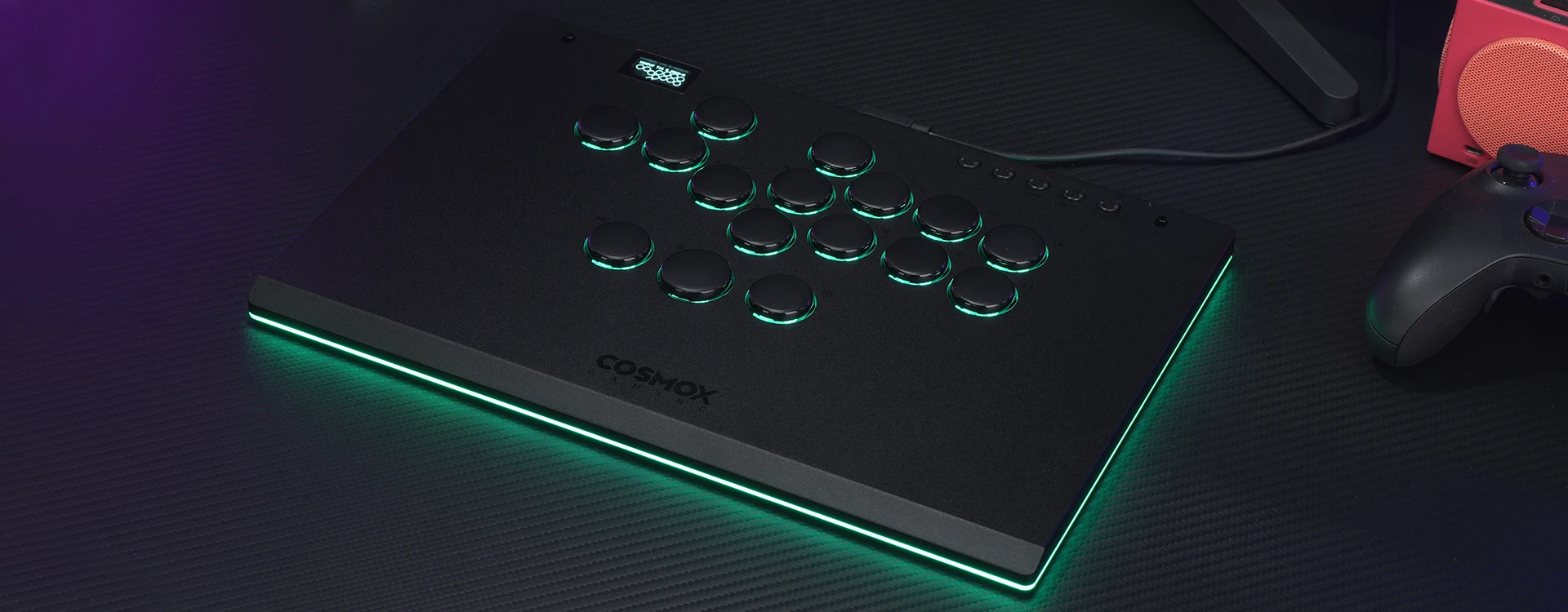

Haute42 Aluminium Alloy Hitbox Leverless Controller Stickless Arcade Stick For PC/ Ps4 / ps5/Steam Hitbox Fighting Controller
NOTE: If you want to connect to PS4 or PS5, you will need a converter or an dongle. Our store also has converters available for you to purchase together
Product Description
Working voltage: 5V
Link method: USB Type-C

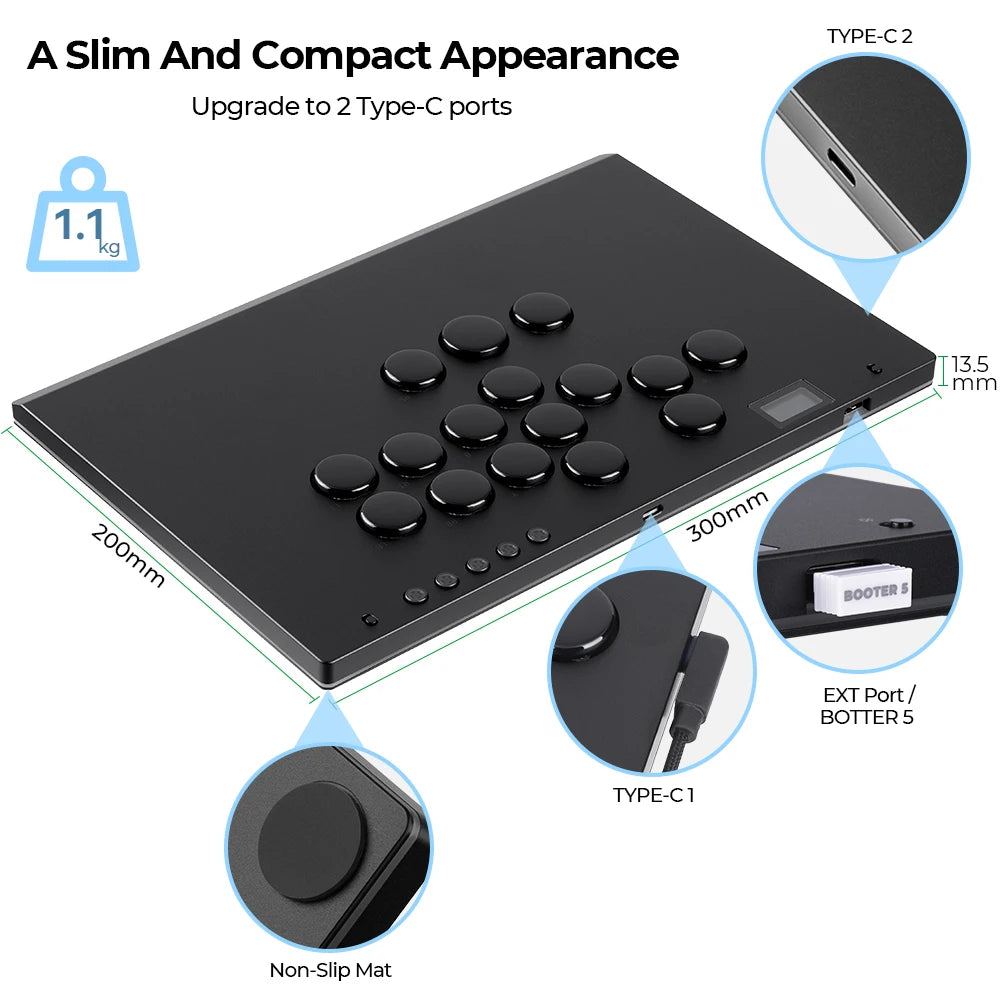

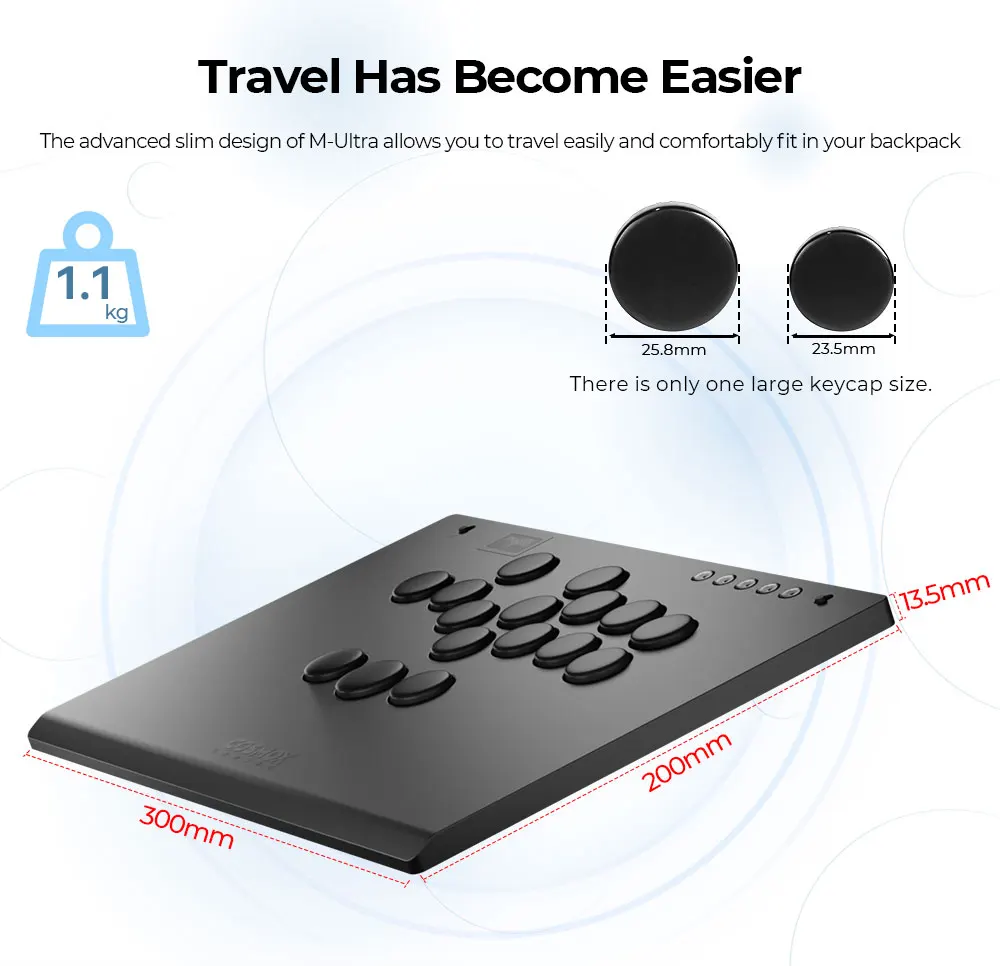

Product size: 300mm * 200mm * 13.5mm Key cap Size:23.8 mm
Supported Platforms : pc /ps3/ps4/switch/ Android/Steam

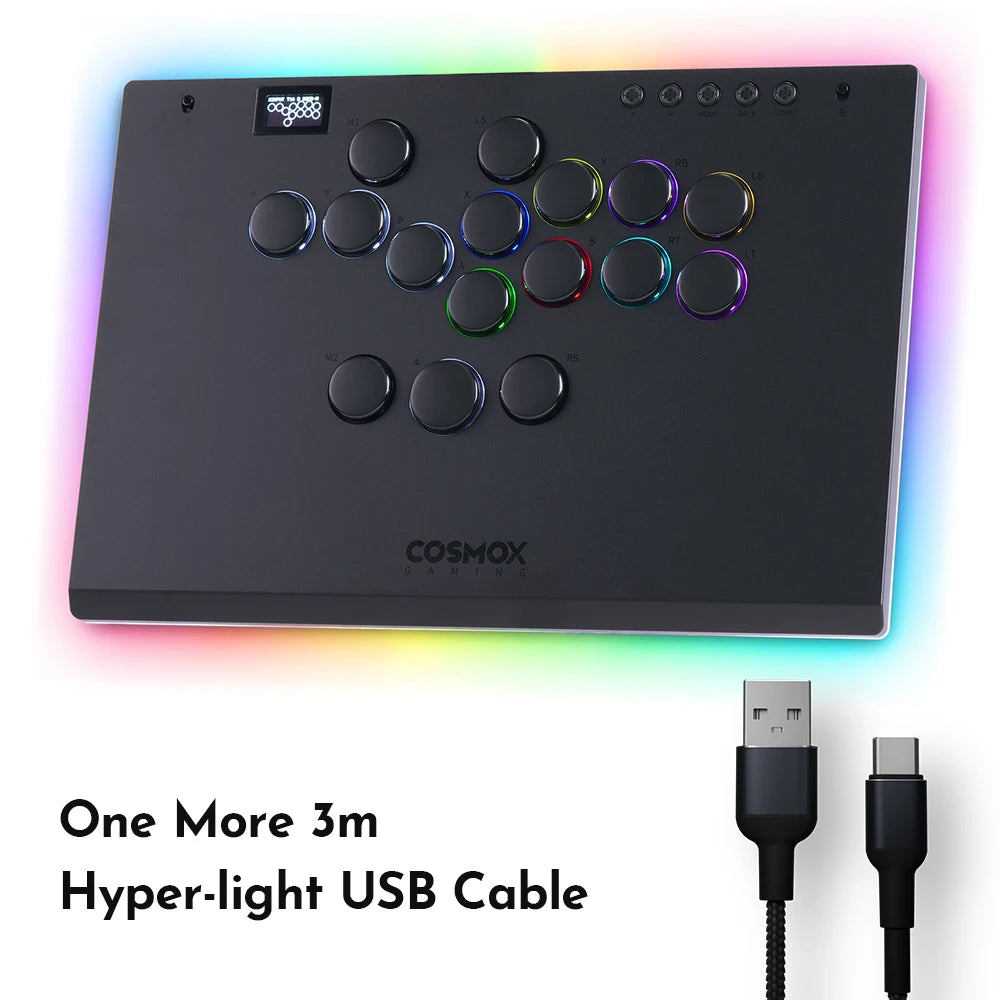

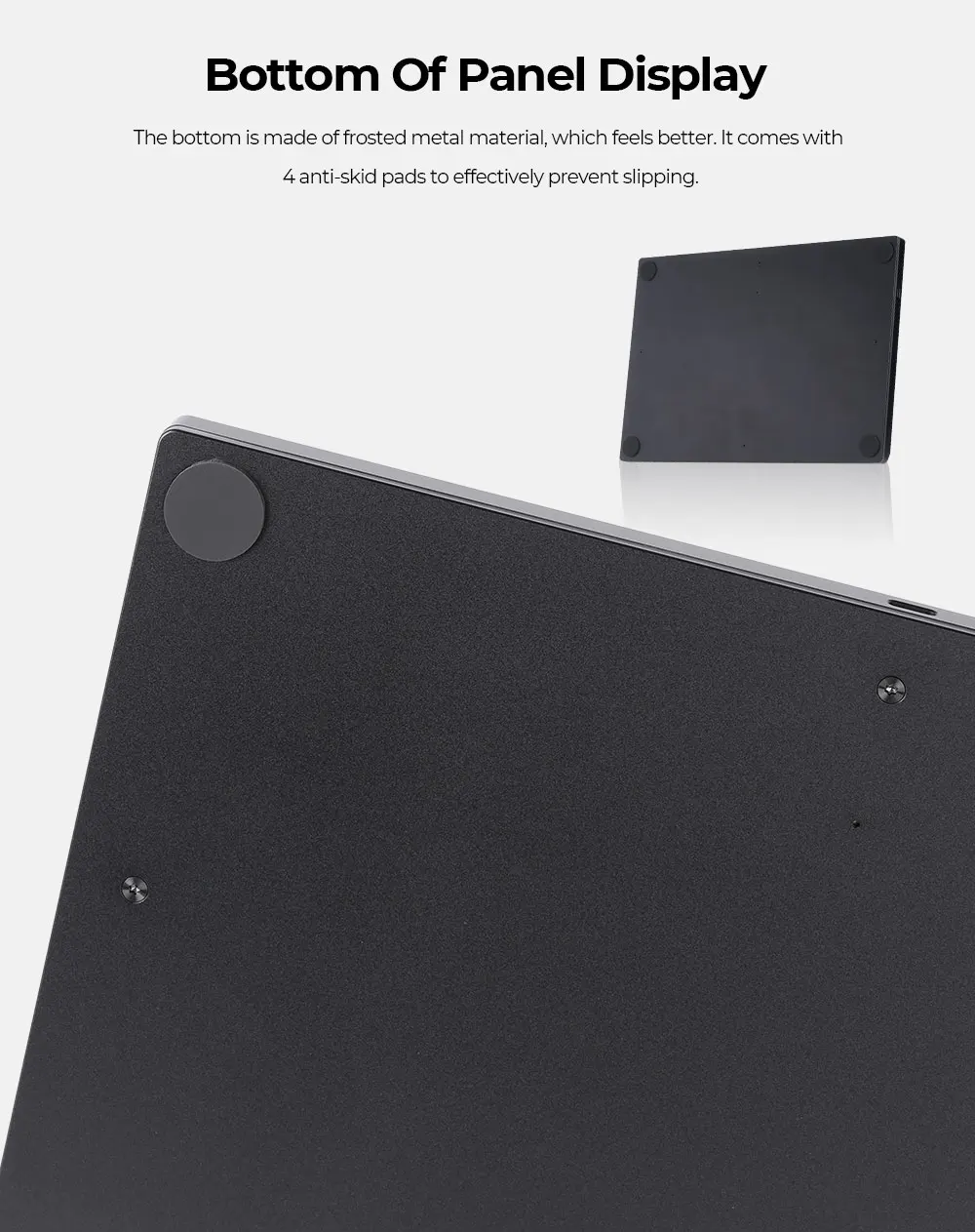

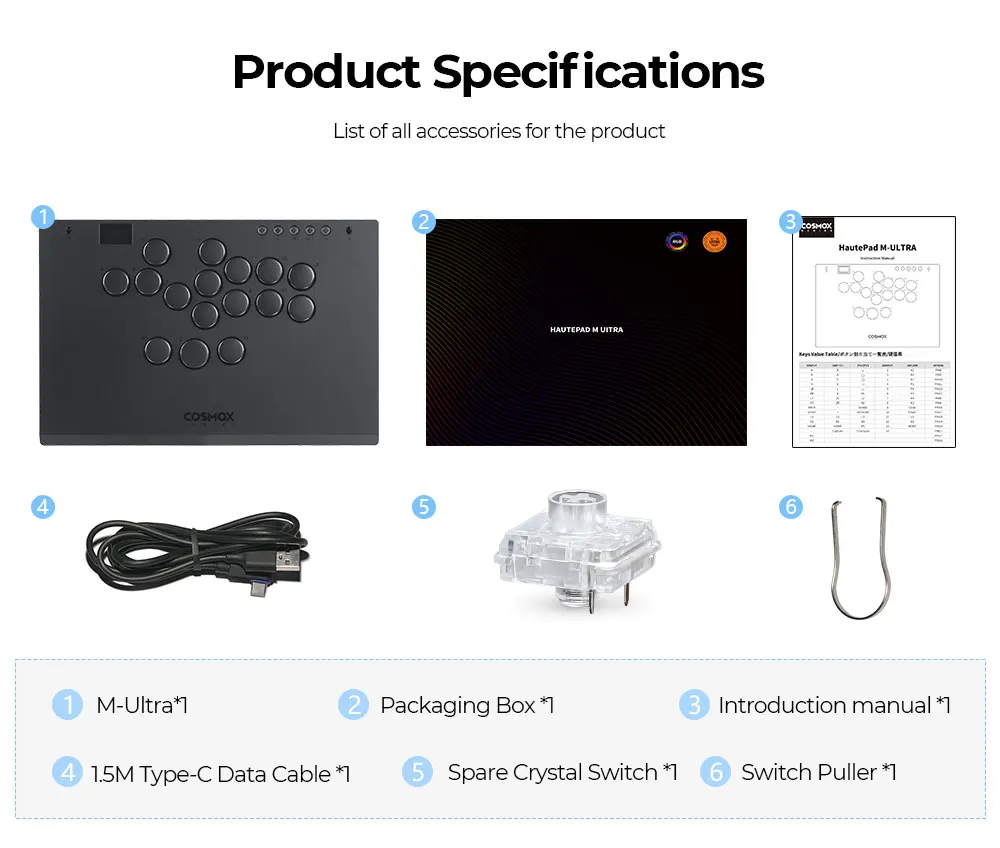

Product Specifications:1Mini Keyboard,1Data Cable Type-C,1Keycap Puller, 4 anti slip pads

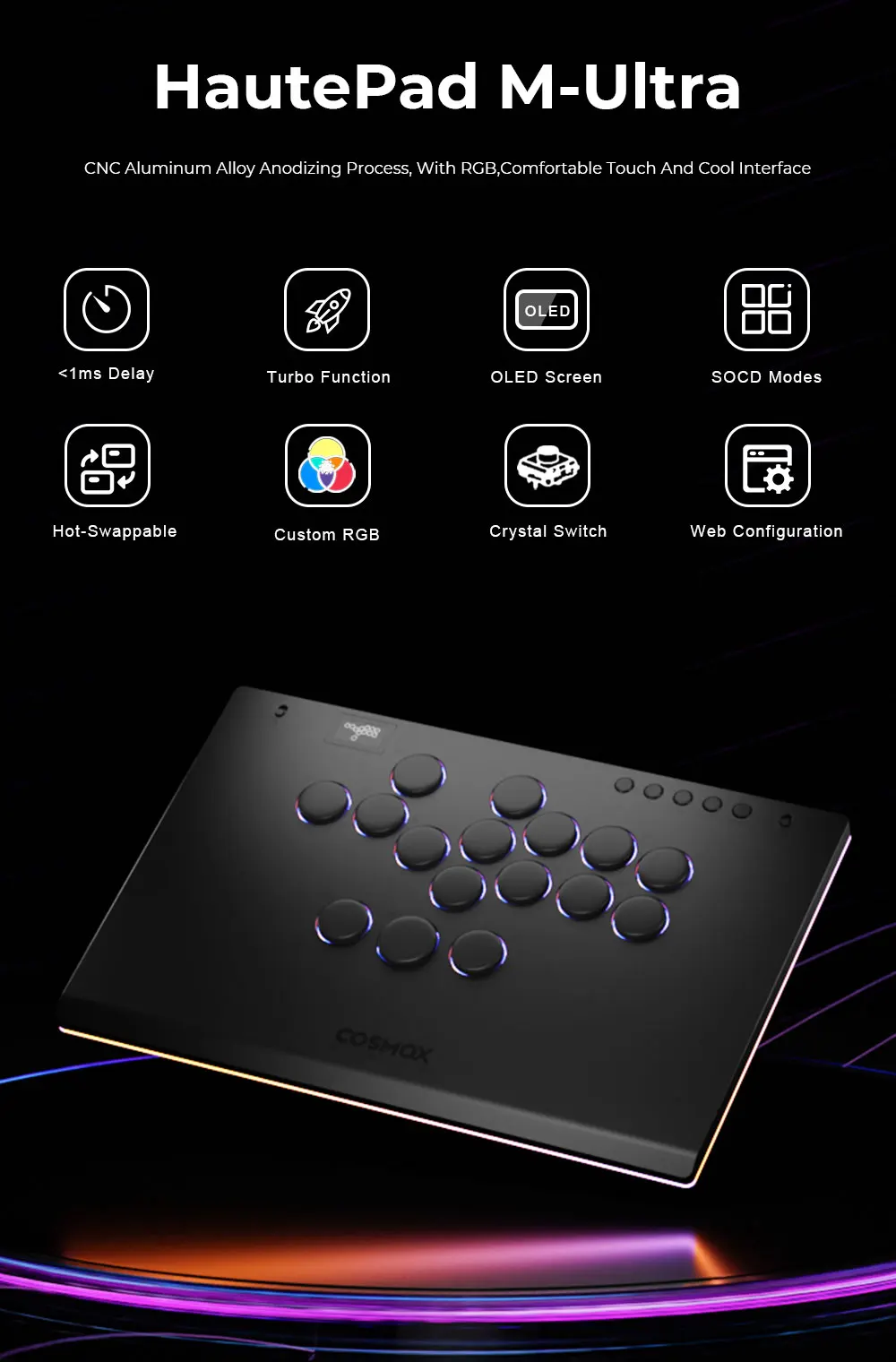

HautePad M-Ultra Series

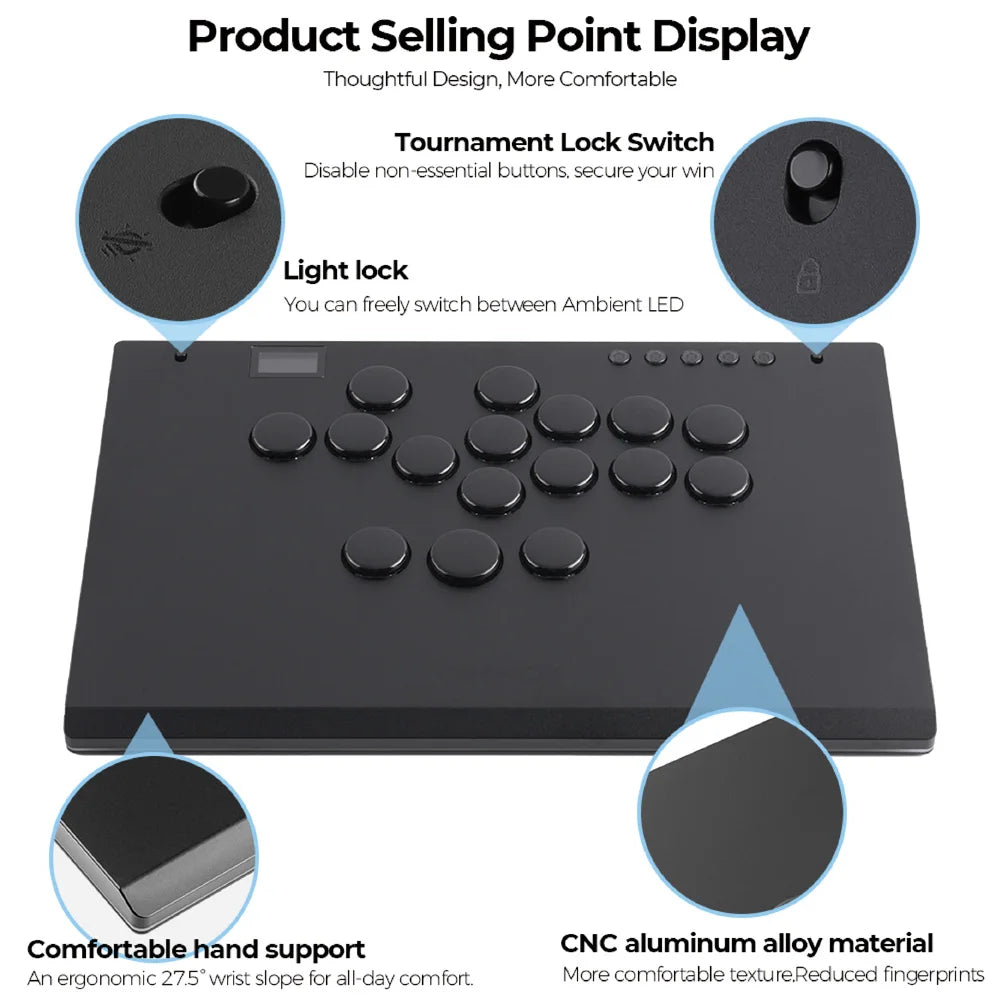

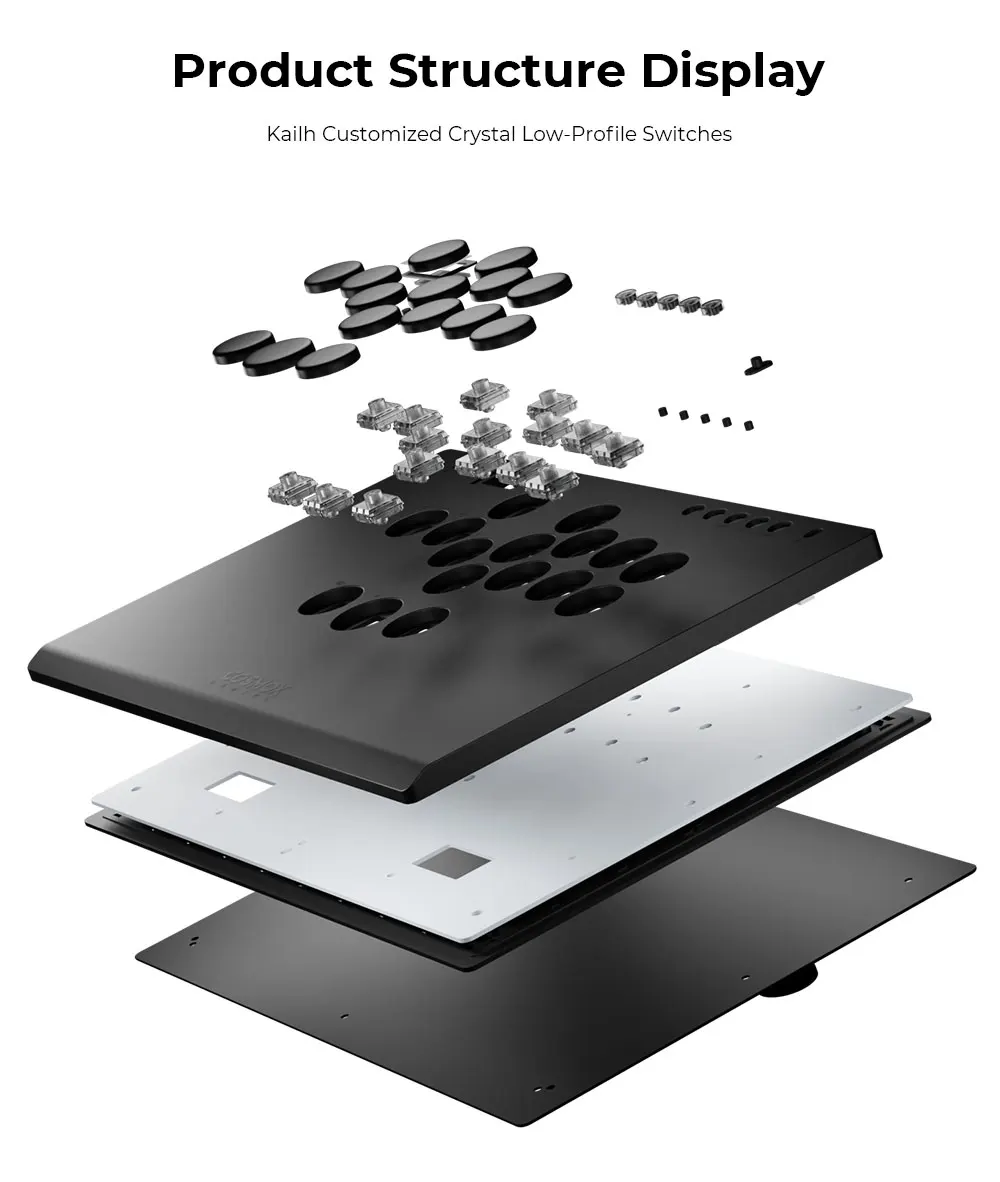

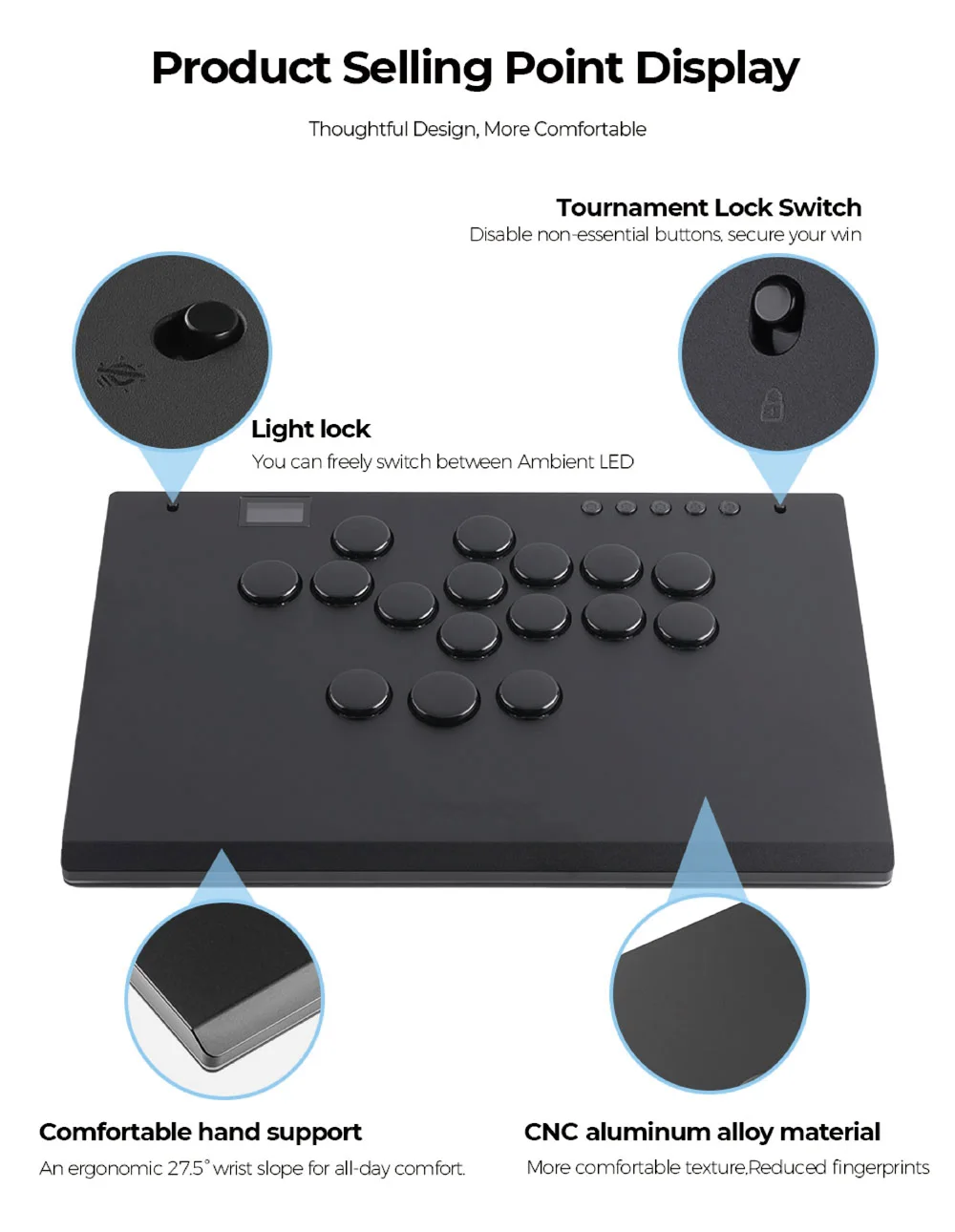

This is an Aluminium Alloy hitbox keyboard made of CNC aluminum alloy

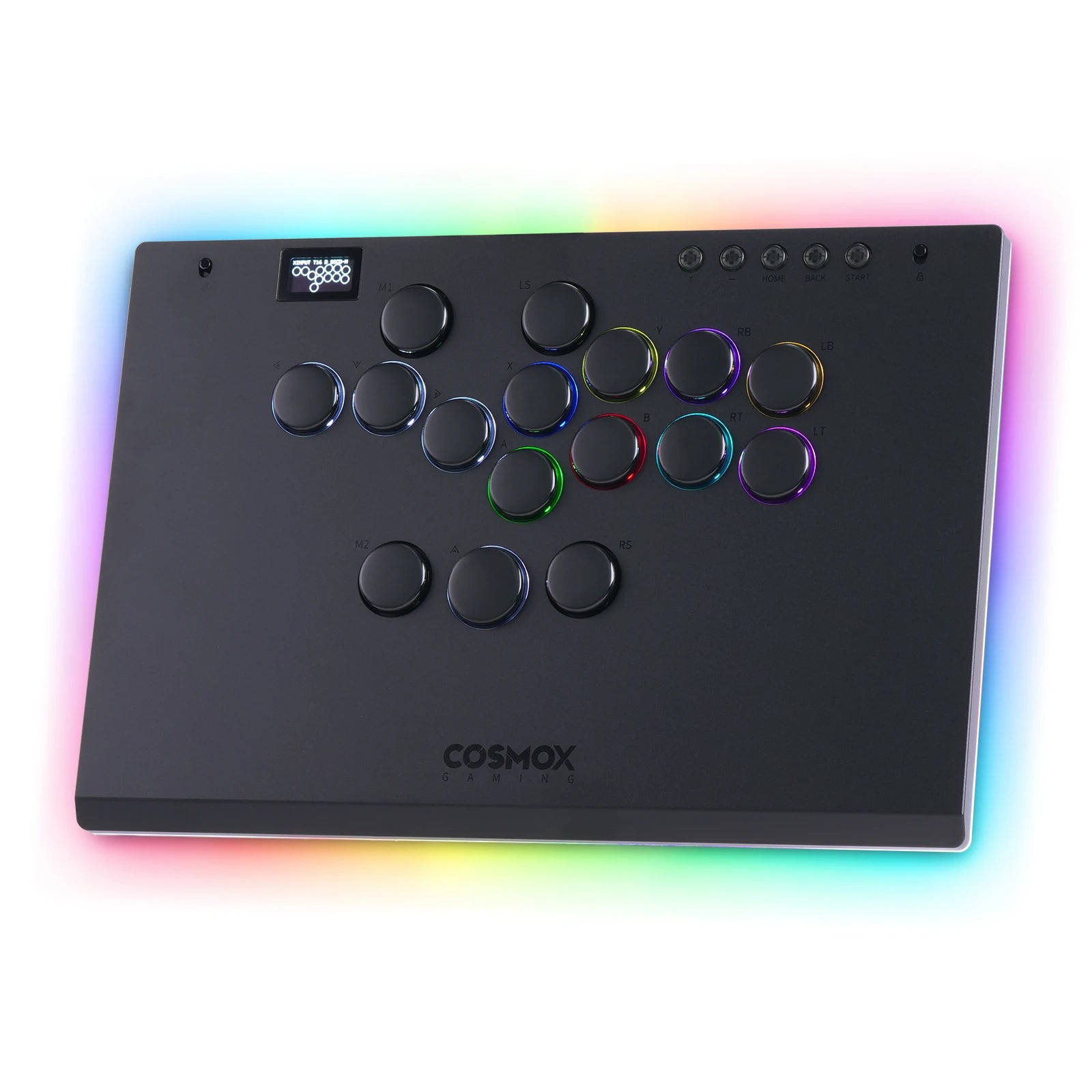

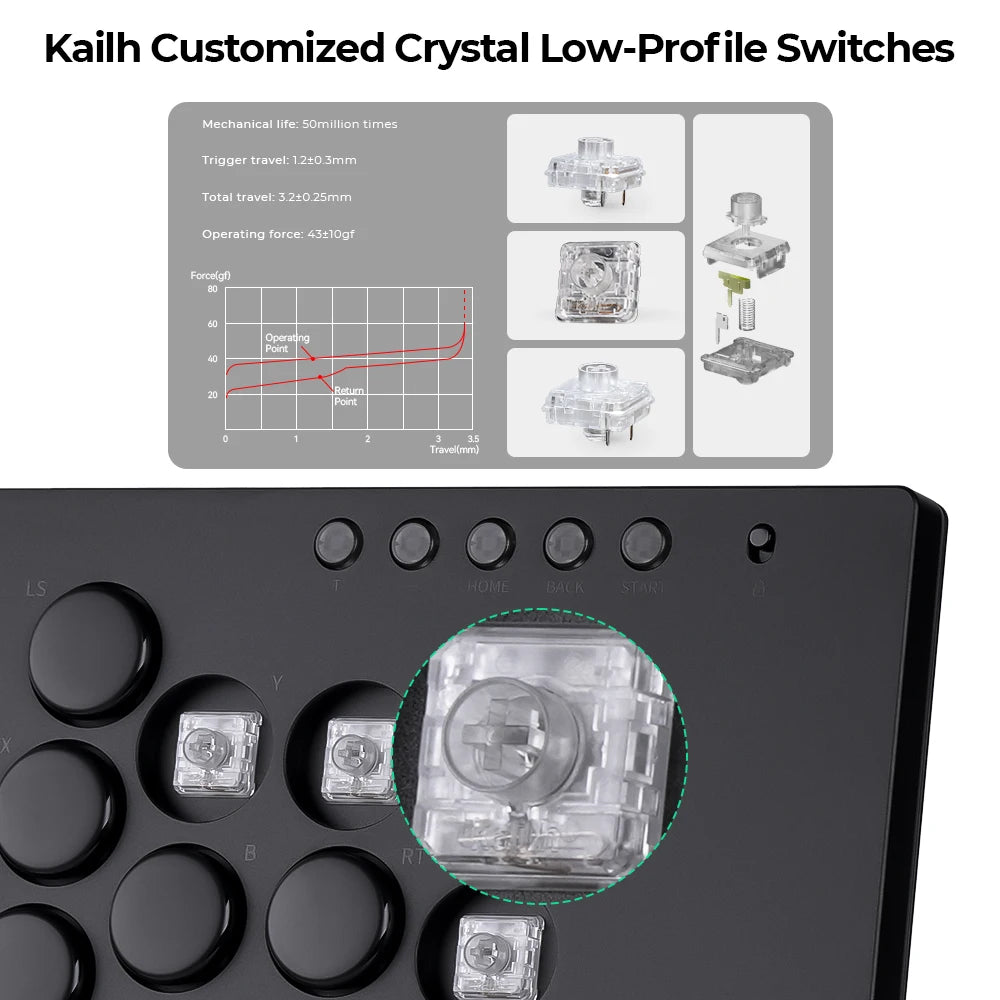

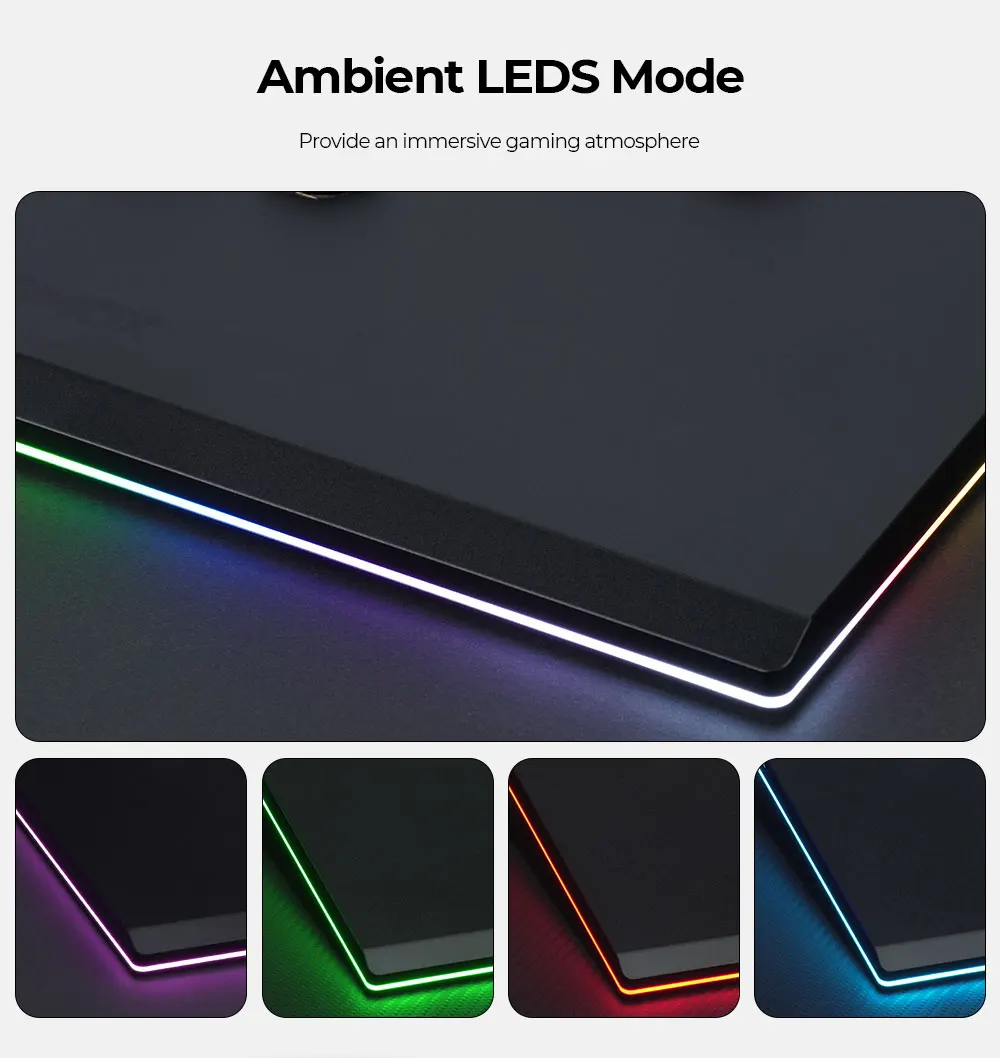

The anodized process is ultra-thin, not bulky at all, compact and easy to carry, uses a crystal low -profile switches, it is has a cool appearance with RGB and Ambient LEDS mode. M-PLUS Upgrade Edition，The overall layout has changed, the panel has become more delicate and less prone to fingerprints ，it is very suitable for fighting games, worth owning!

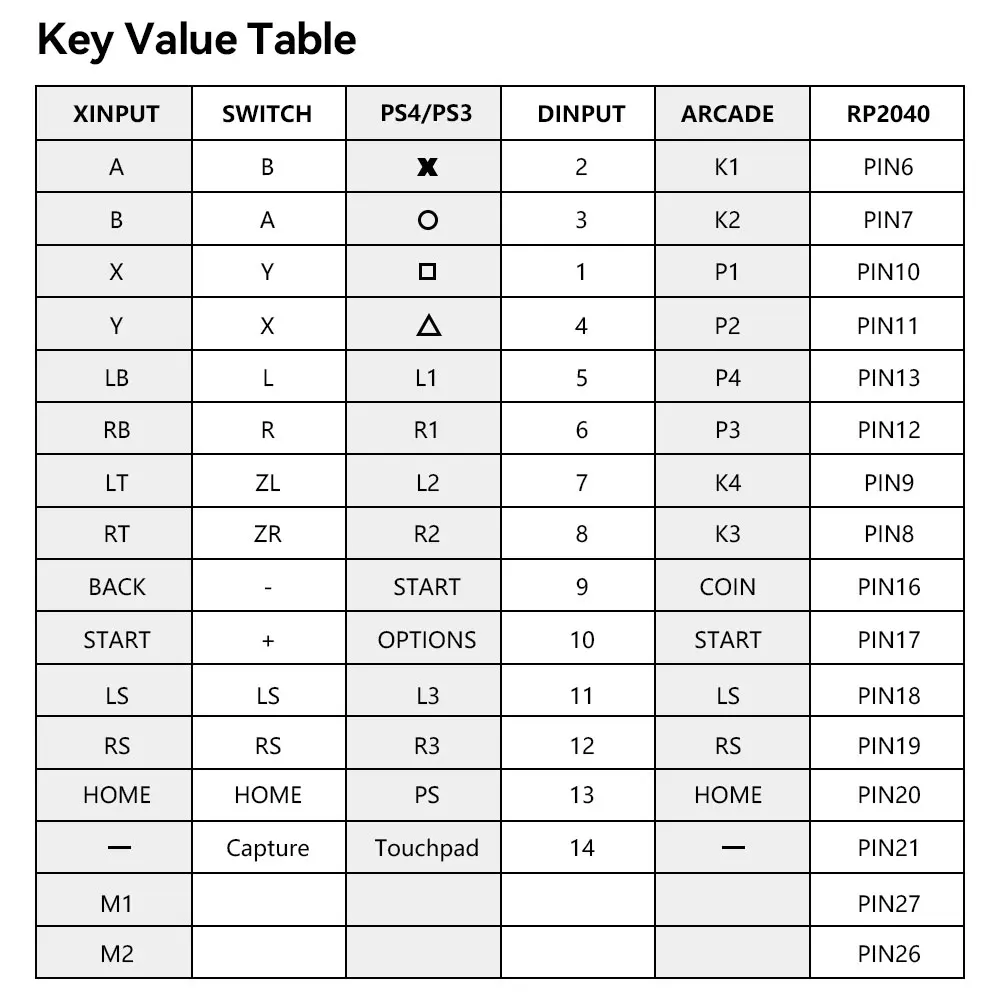

01 Compatibility
B — Xinput mode (Windows/Steam)
A — SWITCH mode
X — PS3 / Dinput mode (Raspberry Pi / Android)
Y — PS4 mode (Compatible with PS4 games on PS5 console）
RT — KEYBOARD mode
Input Mode

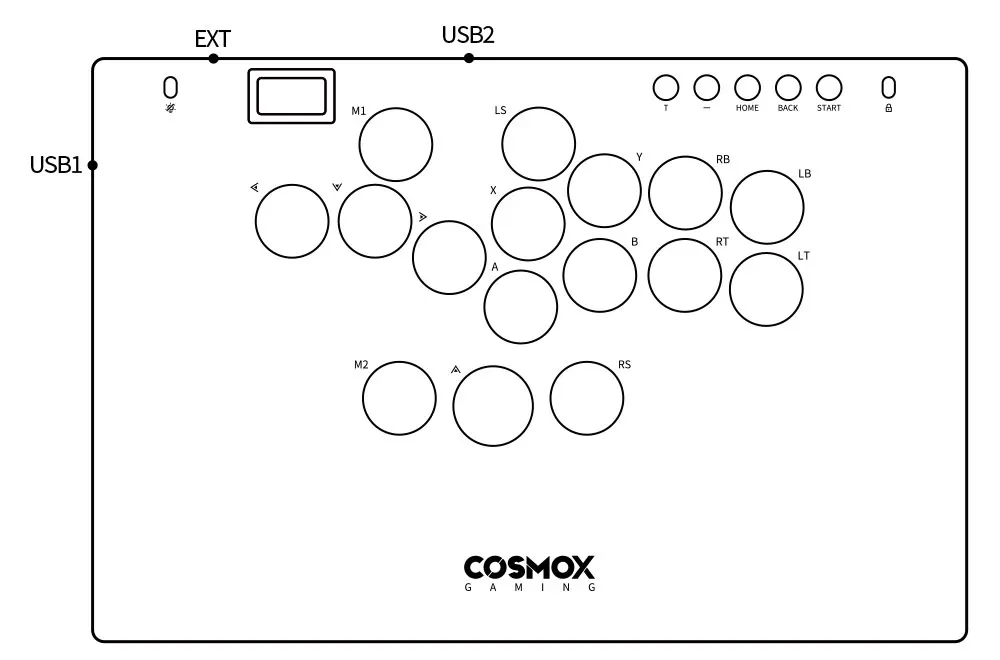

To change the input mode, hold one of the buttons(as shown above) as the controller is plugged in.
Tips：
This product defaults to Xinput mode，Input mode is saved across power cycles.
PS4 /PS5 Mode

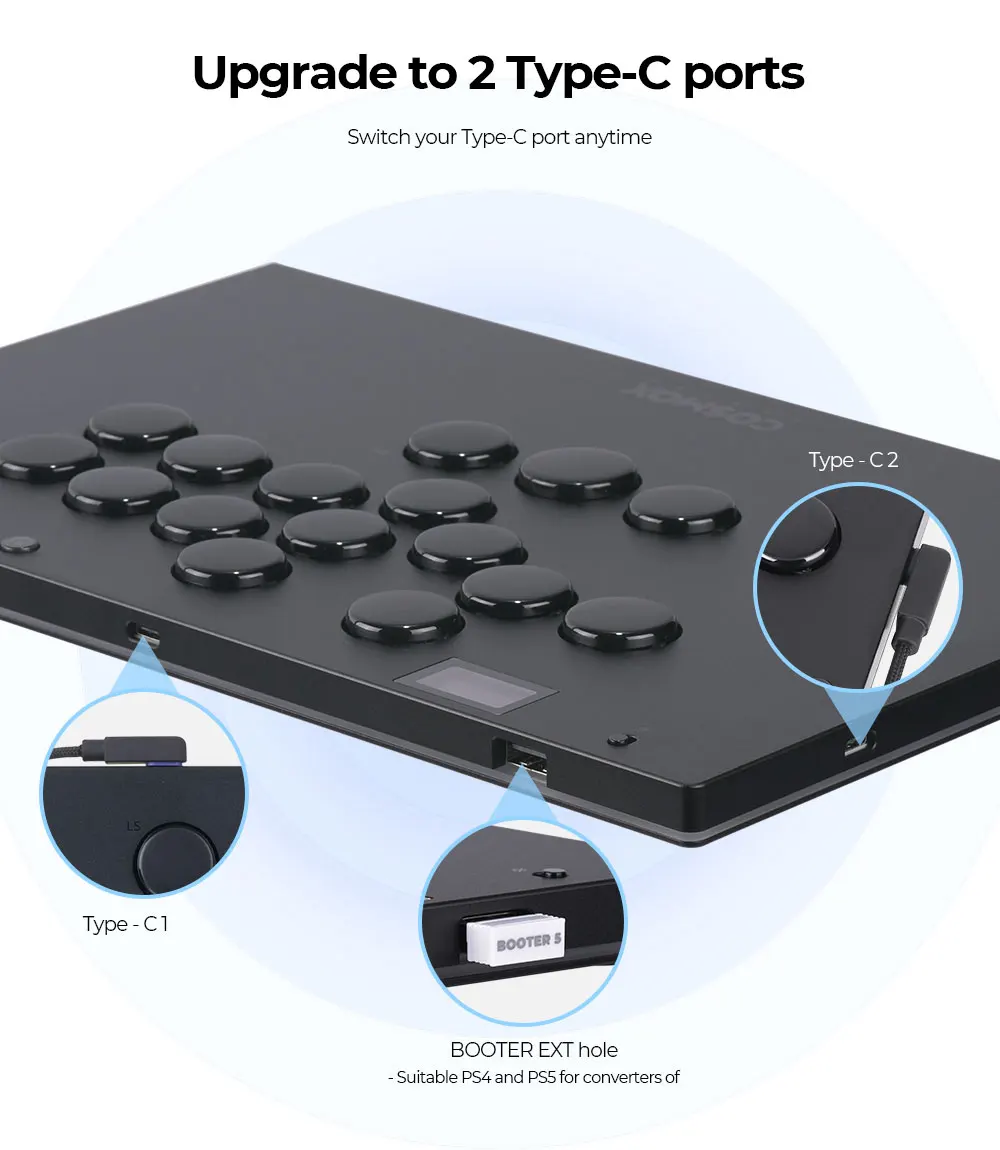

About PS4 /PS5 8 minute disconnection，there are two ways， one is insert a dongle or a officially authorized PS4 wired controller to the EXT.port，We don't have a recommend one，there are too many choices，maybe you can add our discord with other nice players in haute42 group，oficial Website：www.haute42.com
Web Configurator
This product contains a built-in web-based configuration application which can be started up by holding START when plugging your controller into a PC. Then access http://192.168.7.1 in a web browser to begin configuration.
TURBO
Hold TURBO，then press the button which you need to be set for turbo function，then this button will be continuous sending while you press it,to cancel this turbo key，just repeat the privious step.
The turbo key that set will be cleard when power off.
These keys can be set as a Turbo key: A / B / X / Y / LB / RB / LT / RT

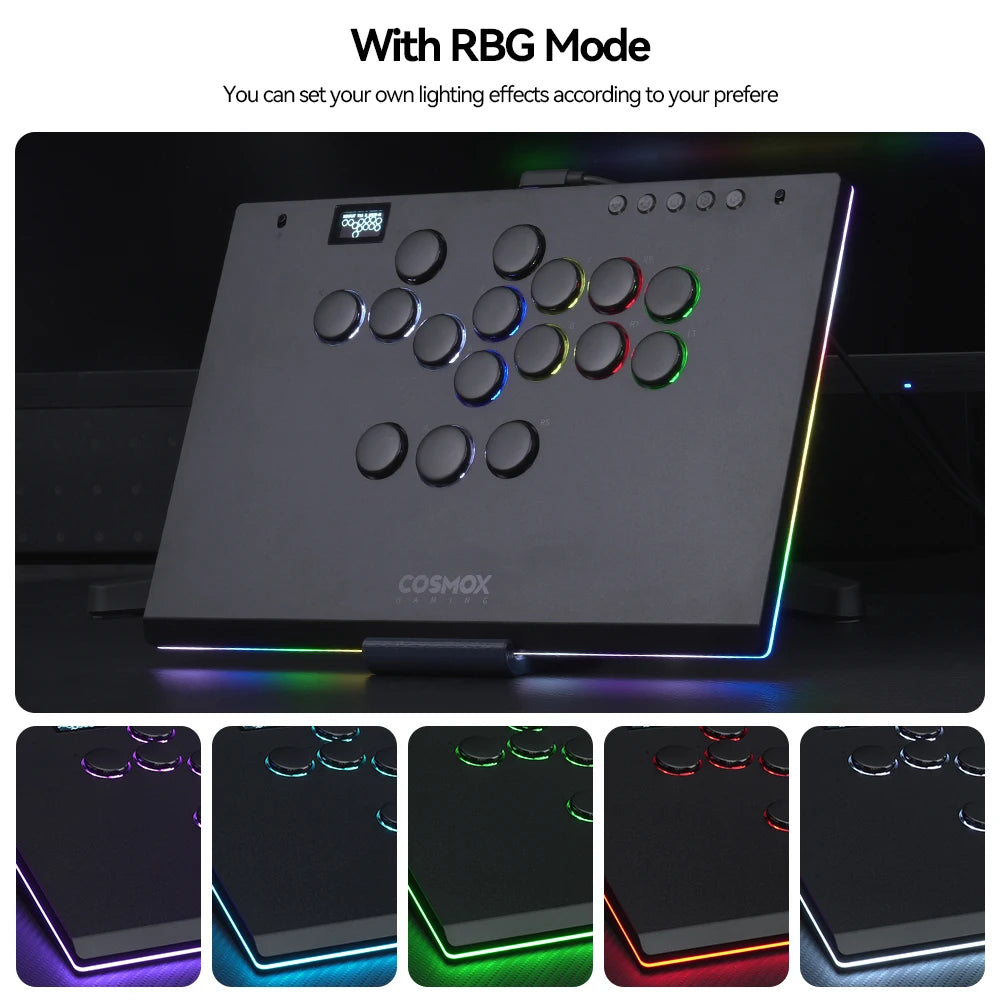

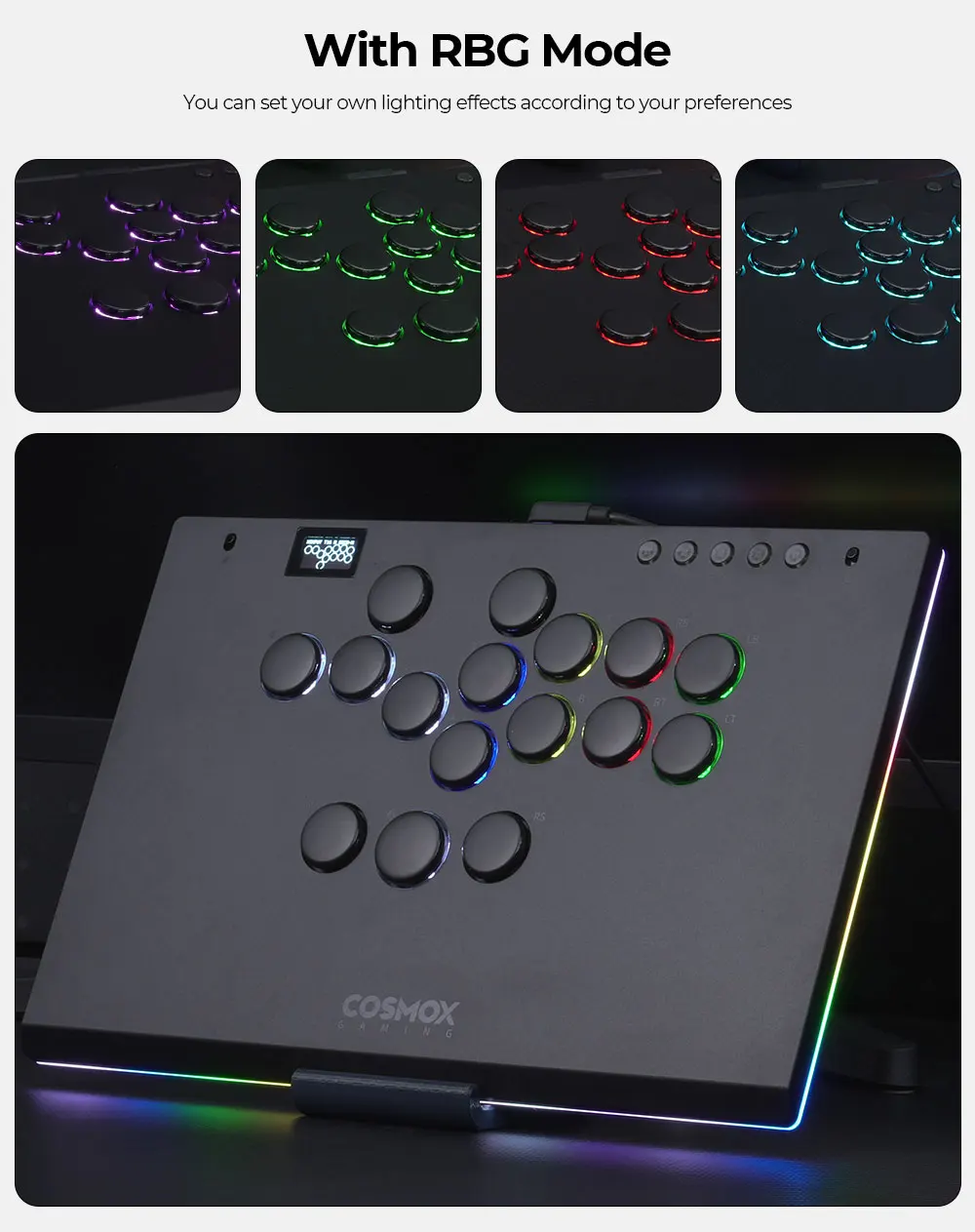

04 RGB LED Setting
●BACK + START + X Next Animation
●BACK + START + A Previous Animation
●BACK + START + Y Brightness Up
●BACK + START + B Brightness Down
●BACK + START + RB LED Parameter Up
●BACK + START + RT LED Parameter Down
●BACK + START + LB Pressed Parameter Up
●BACK + START + LT Pressed Parameter Down
