SPECIFICATIONS
Brand Name: Manhot
Certification: CE,RoHS
Choice: yes
Hign-concerned Chemical: None
Model Number: 15CM Short Curtain Motor
Origin: Mainland China
Rolling Speed: 0.14M/S
Voltage: 110-240V
Wattage: 20W
is_customized: Yes
Feature
1.Concealed Design for Better Aesthetics Mini Size Curtain Motor,Hidden Design.
2.Smaller Size,The Same Power Smaller size,Just have 15CM.The same power.1.2 Nm,capable of bearing a load of 40 kg.

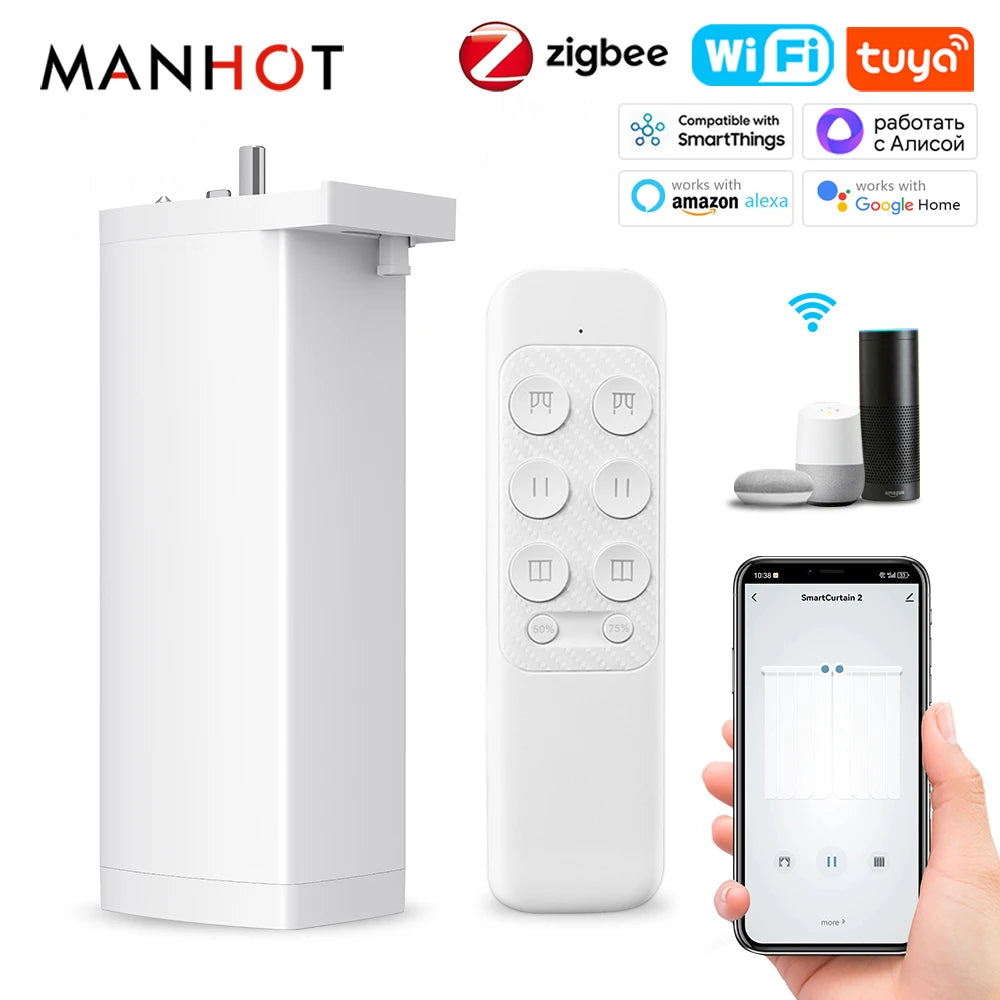

3.Voice Control Support Alexa/Google Home/Yandex Alice/SmartThings voice control.

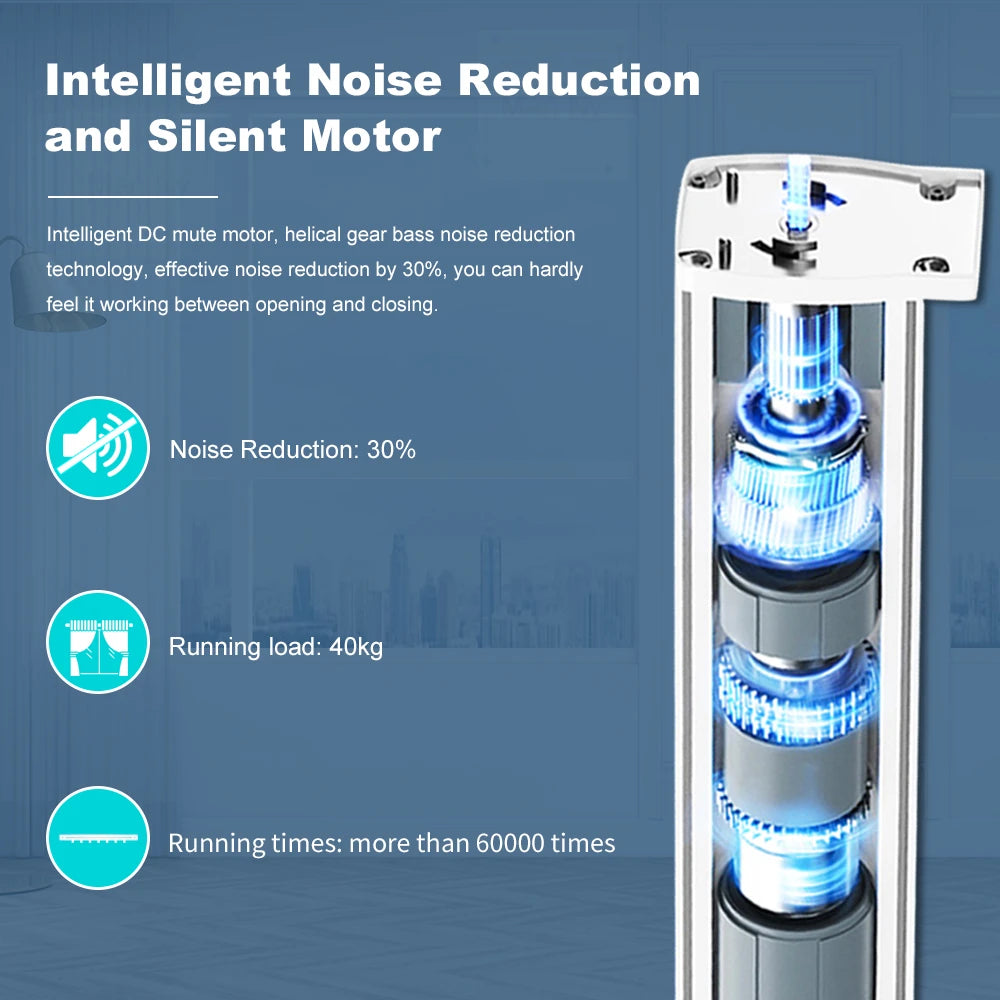

4.Ultra-quiet design You can hardly hear the sound of the motorUltra-quiet (33dB) you will hardly feel any sound during the motor running process
5.App Control Via controller or mobile APP.The operation of curtain motor equipment can be realized.

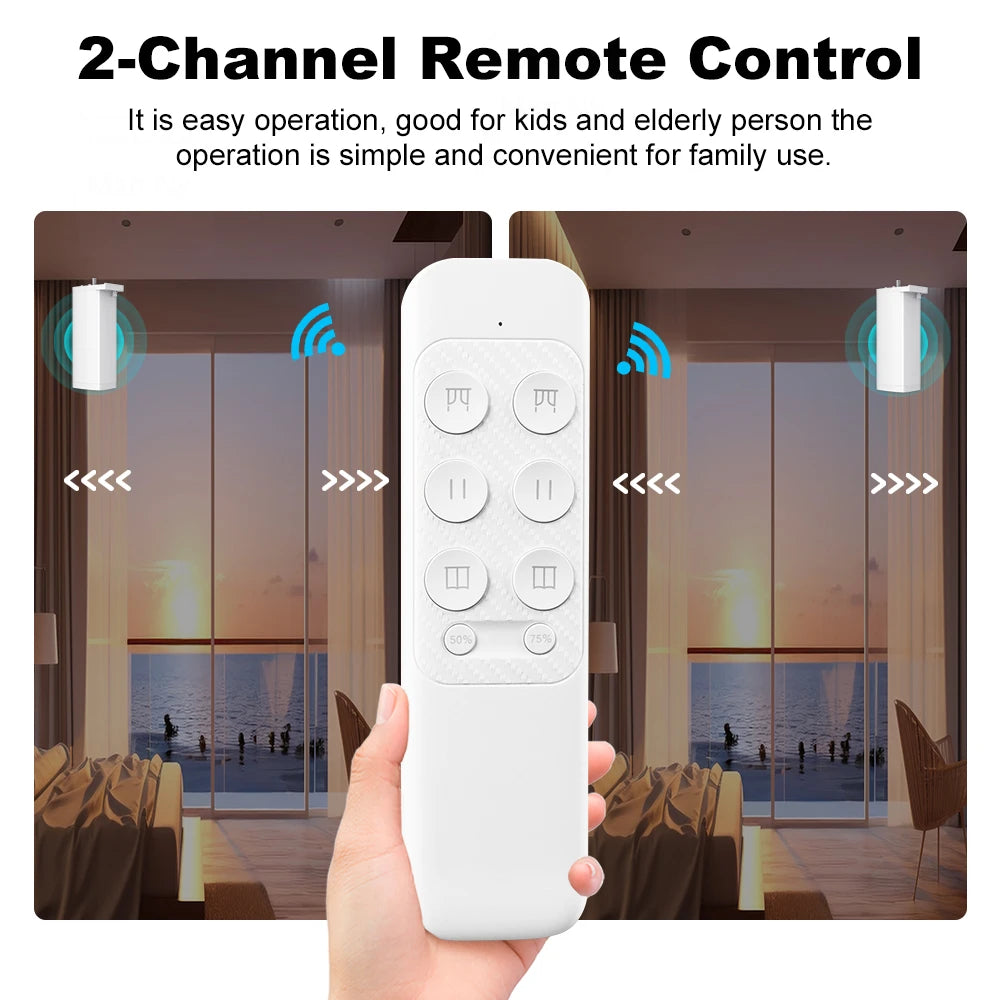

6.2 Channel Handheld Remote Control With 2 Channel Remote Control.You can control 2 motors at the same time with this remote control. It is easy operation,good for kids and elderly person.The operation is simple and convenient for family use.
7.Manual Control This automatic curtain control system can be operated manually too(in case power shut off).Pull the curtain gently to make it run automatically.

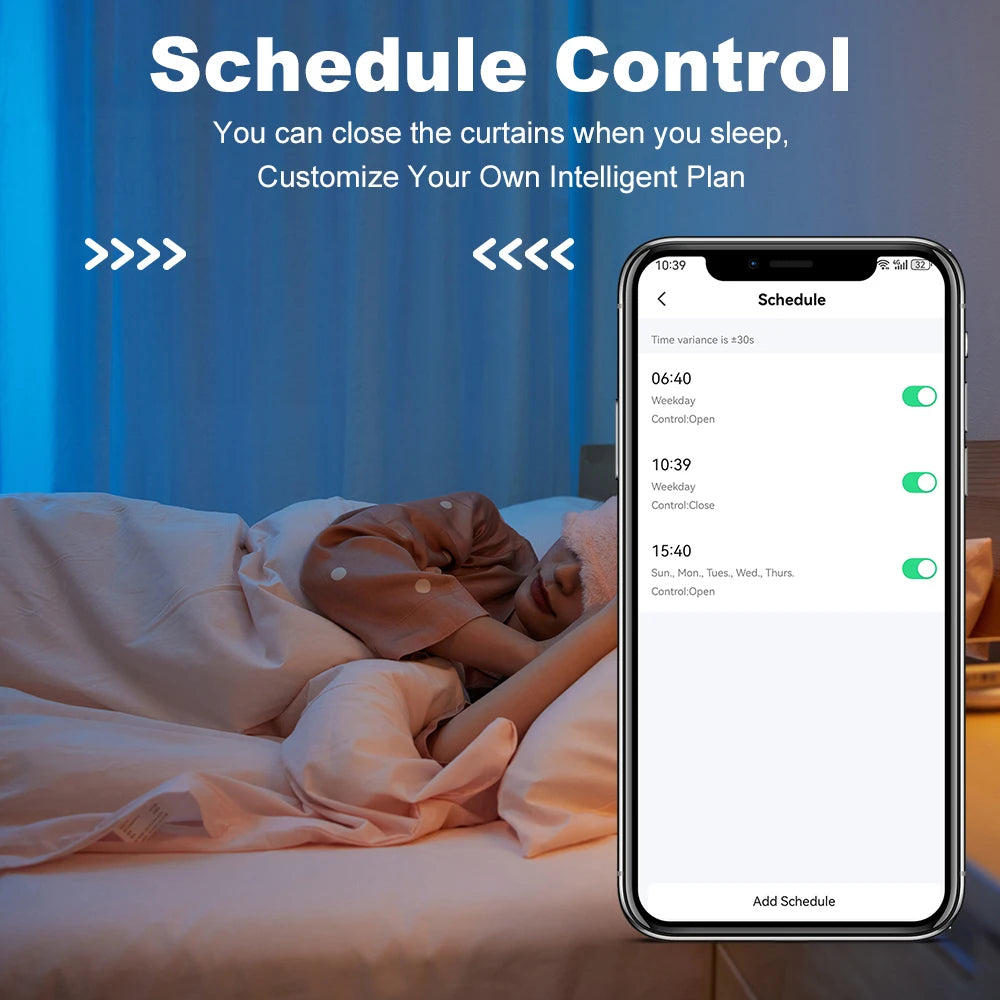

8.Schedule Setting open and close time as your like, open when sun rise, and close when sunset.
9.Easier Control Via Alexa/Google/Wifi: Just connect it with Wi-Fi (Tuya), you can control it up or down through voice or APP on your mobile phone.(Note:Zigbee Version need a zigbee gateway)
10.Family Share Function You can share the switch to your family with the limited right,create a smart home together with your family member.
11. Group-Control Function The Switch can be set in group with other switch in different room, realize group control function in.
Specification:

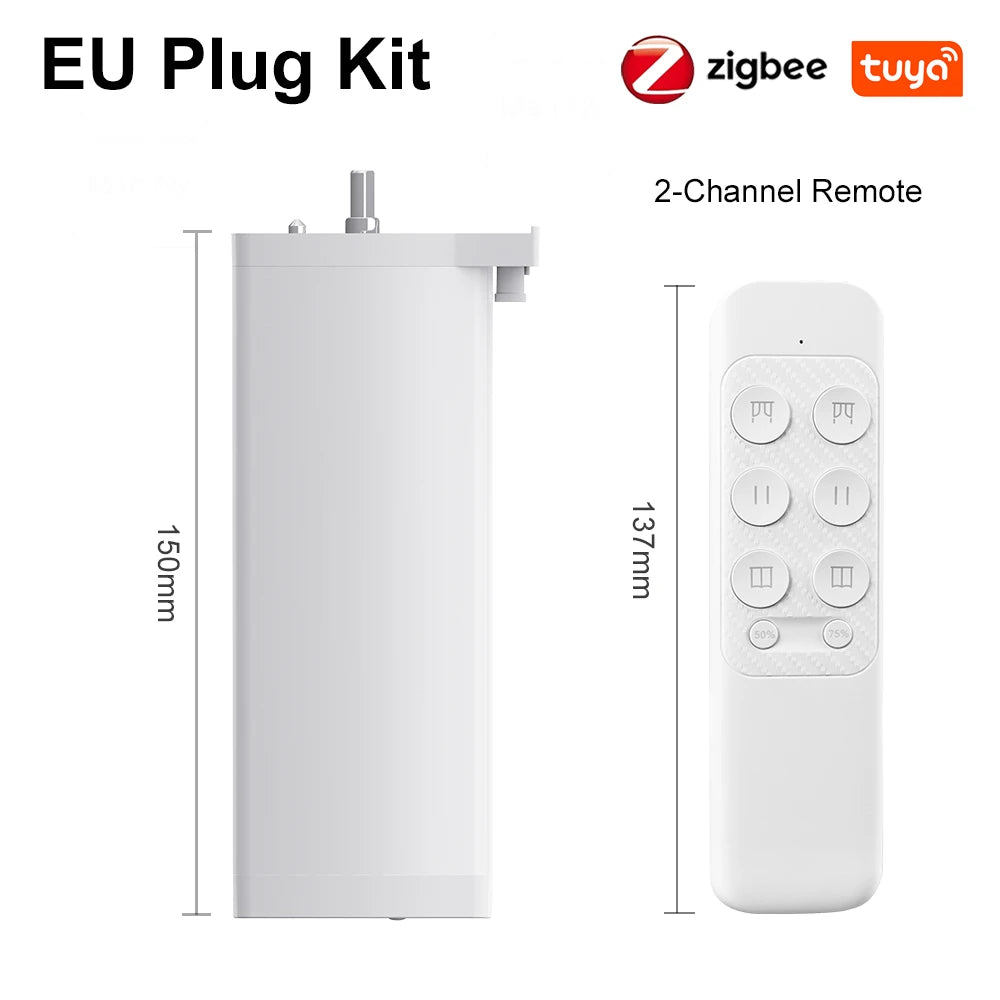

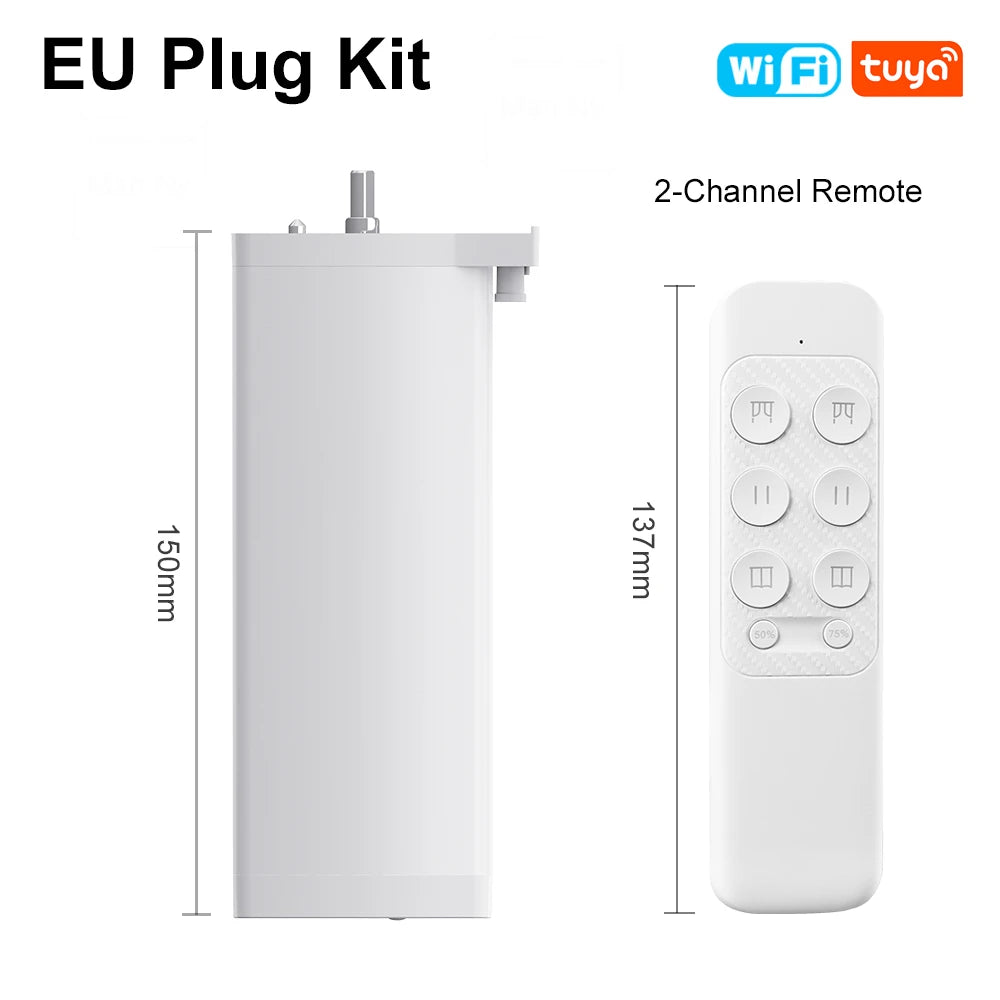

--Name: WiFi Curtain Motor
--Size: 15CM
--Plug: US,EU,KR
--Curtain Motor Size: 150 * 72 * 50mm
--Rated Voltage: 100-240V (50/60HZ)
--Max Current: 1A
--Runing Speed: 0.14m/s (5.5inch/s)
--Received Frequency: 433.92Mhz
--Rated Power: 20W
--Rated Torque: 1.2Nm
--Rated Speed: 60r/min
--Operation Temperature: -10°~50°
--Level of Protection: IP 40
--Runing Noise:33db
--Weight Capacity: 40KG
--Voice Control: Alexa Echo/Google Assistant/Yandex Alice/SmartThings
--Control APP: Smart Life/Tuya Smart
Packing List:
--Electric Curtain Motor * 1
--2 Channel Remote * 1
--User Manual * 1
