SPECIFICATIONS

APP: XMEye

Alarm Trigger: Motion Detection,Face Detection

Brand Name: WGWK

Built-in Memory Size: Non

Certification: CE

High Definition Support: 1080P (Full-HD)

Hign-concerned Chemical: None

Lens: 2.1mm,2.8mm,4mm,6mm,8mm,2.8-12mm,3.6-10mm,5-50mm,6-60mm,5-100mm

Main stream: 3840x2160@15FPS 2880x1616@25FPS 2560x1440@25FPS 2304x1296@25FPS 1920x1080@25FPS

Memory Card Type: None

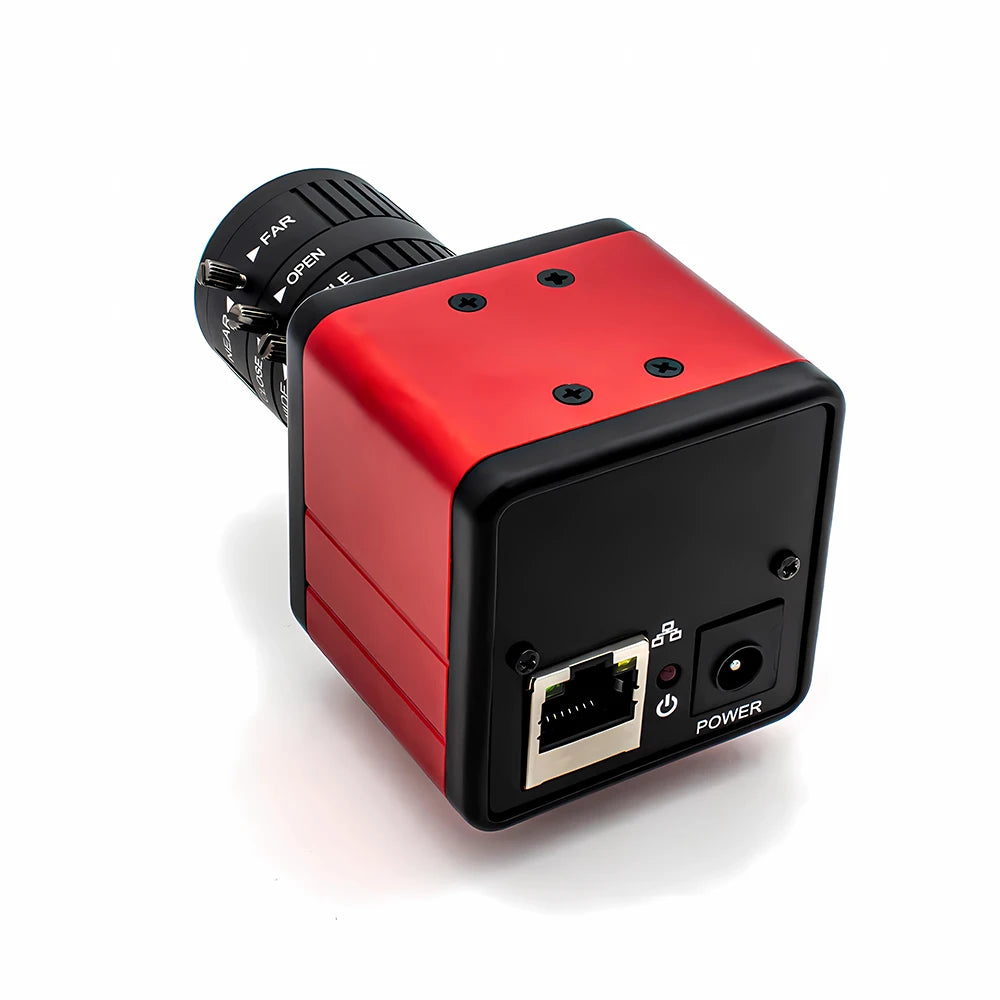

Network Interface: 1*RJ45 network interface,10/100m adaptive

Origin: Mainland China

Package: Yes

Power: Support POE Power Supply

Power Supply: Power DC12V 2A,Support for POE power supply

Resolution: 3/4/5/8MP

Sensor Technology: CMOS

Software: VMS

Support: SDK

Type: Mini

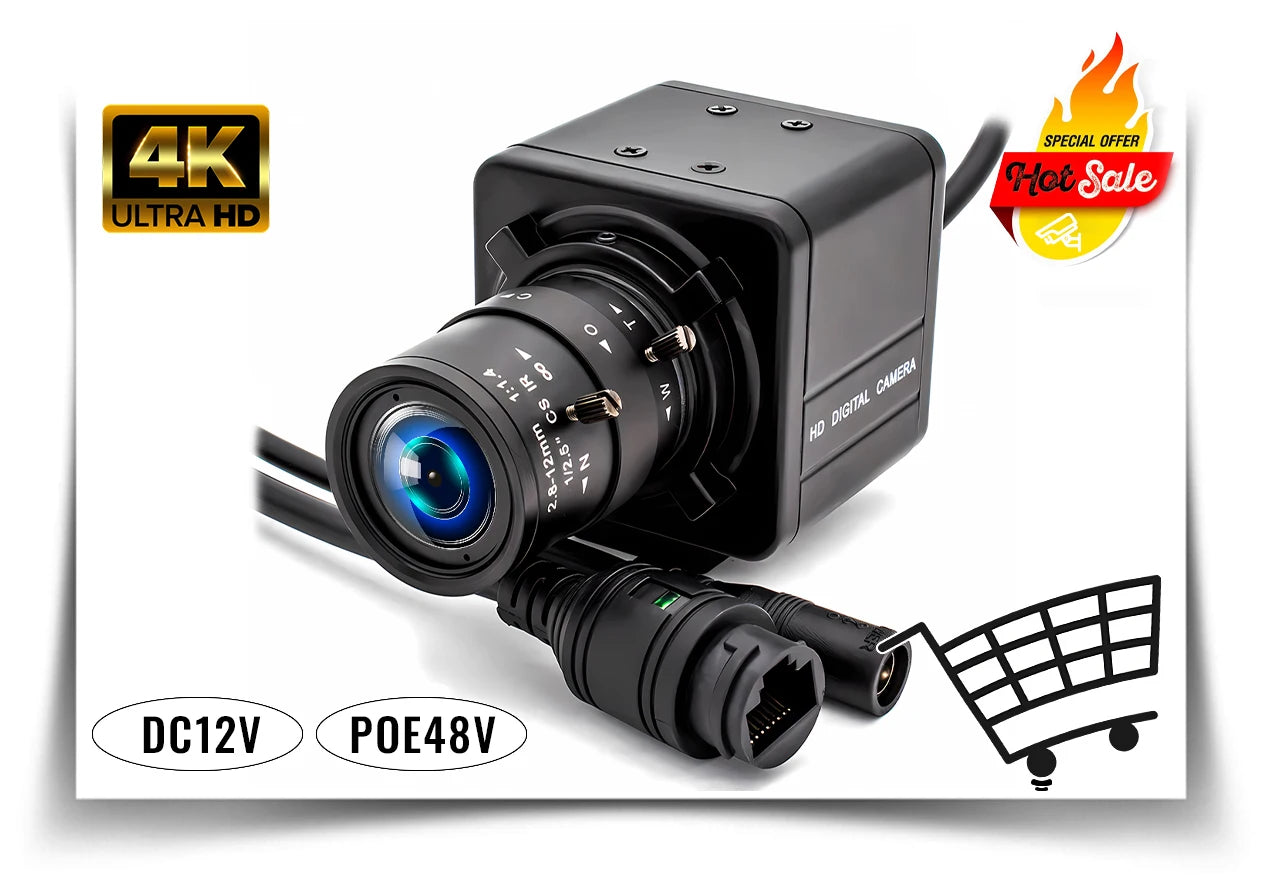

【Best-selling products】IP Network Camera, click the image for direct access to the purchase channel ▶

Enhance the flexibility and efficiency of your industrial applications by choosing our customizable industrial cameras! Whether it's the housing design, cable length, lens specifications, or special features, this camera can provide you with tailored solutions.

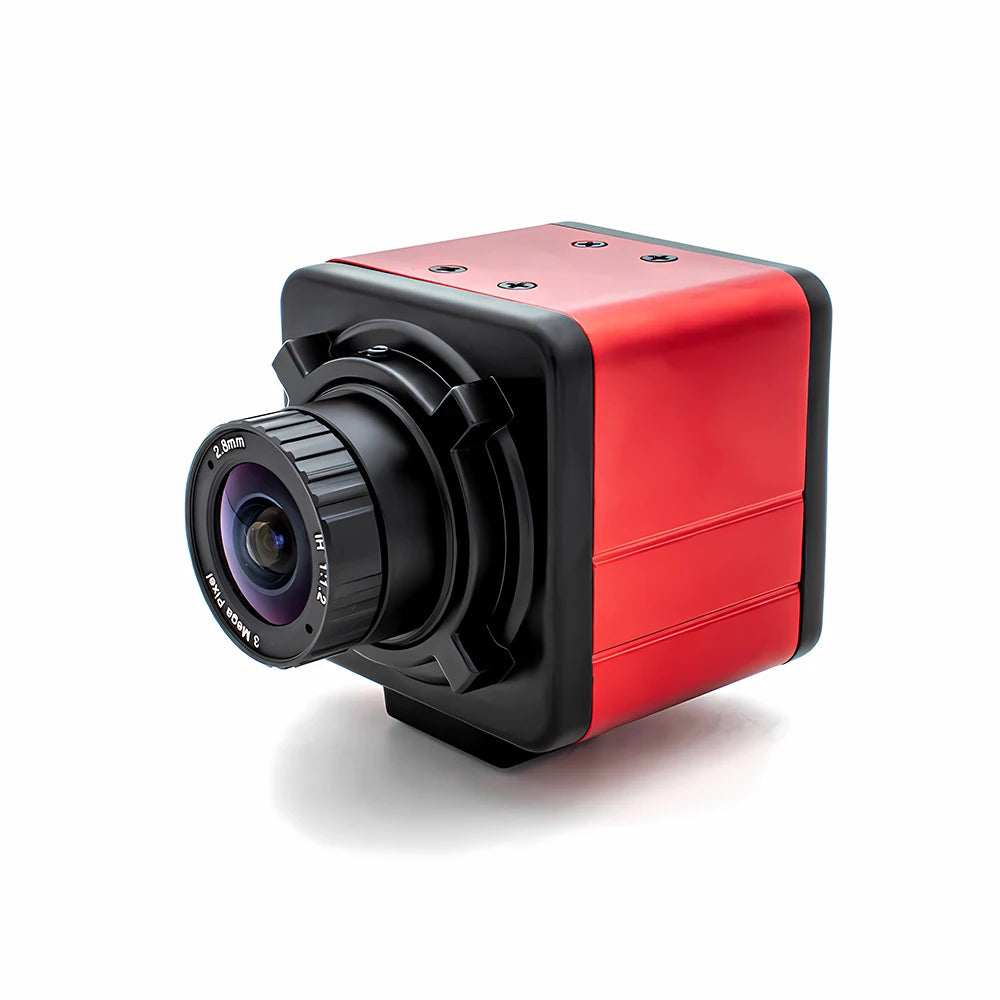

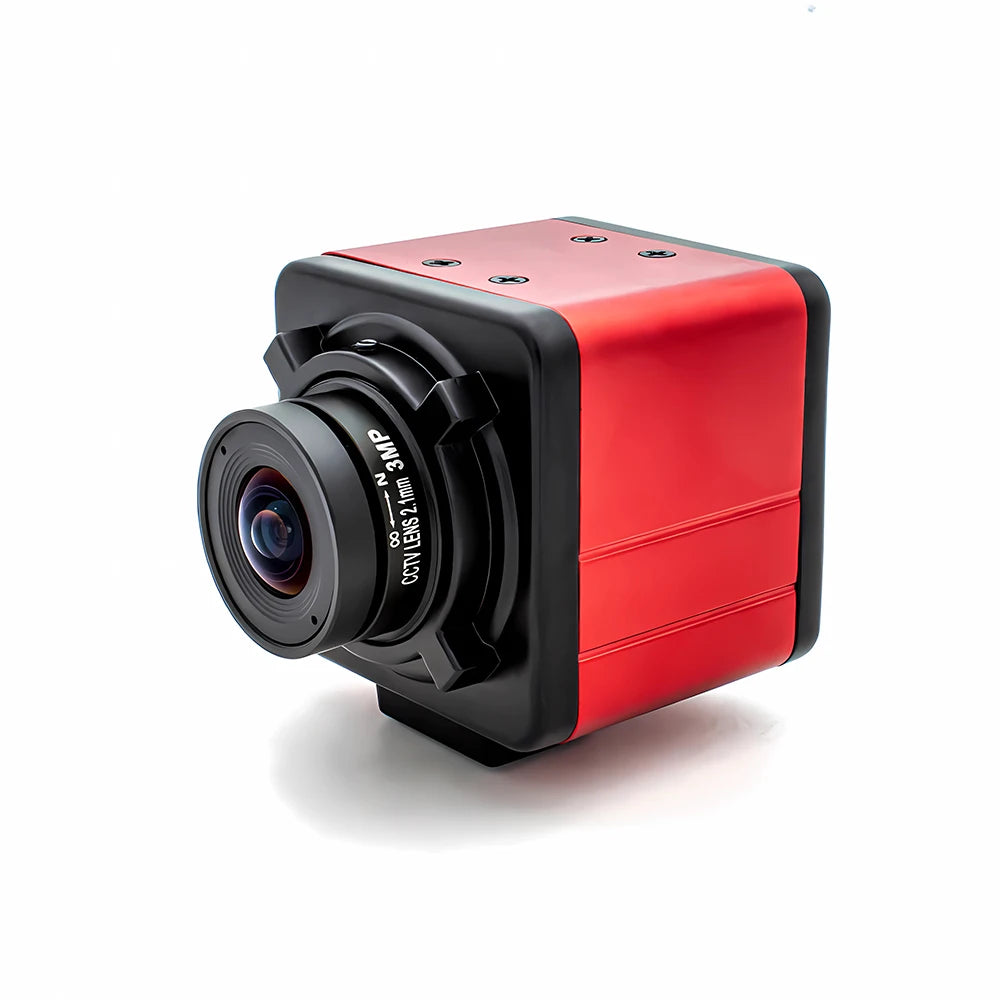

WGWK 4K IP Camera Smart Home 3/4/5/8MP HD Security Camera Auto Tracking Network Safety Security Surveillance Mini Onvif POE Webcam

NOTE:

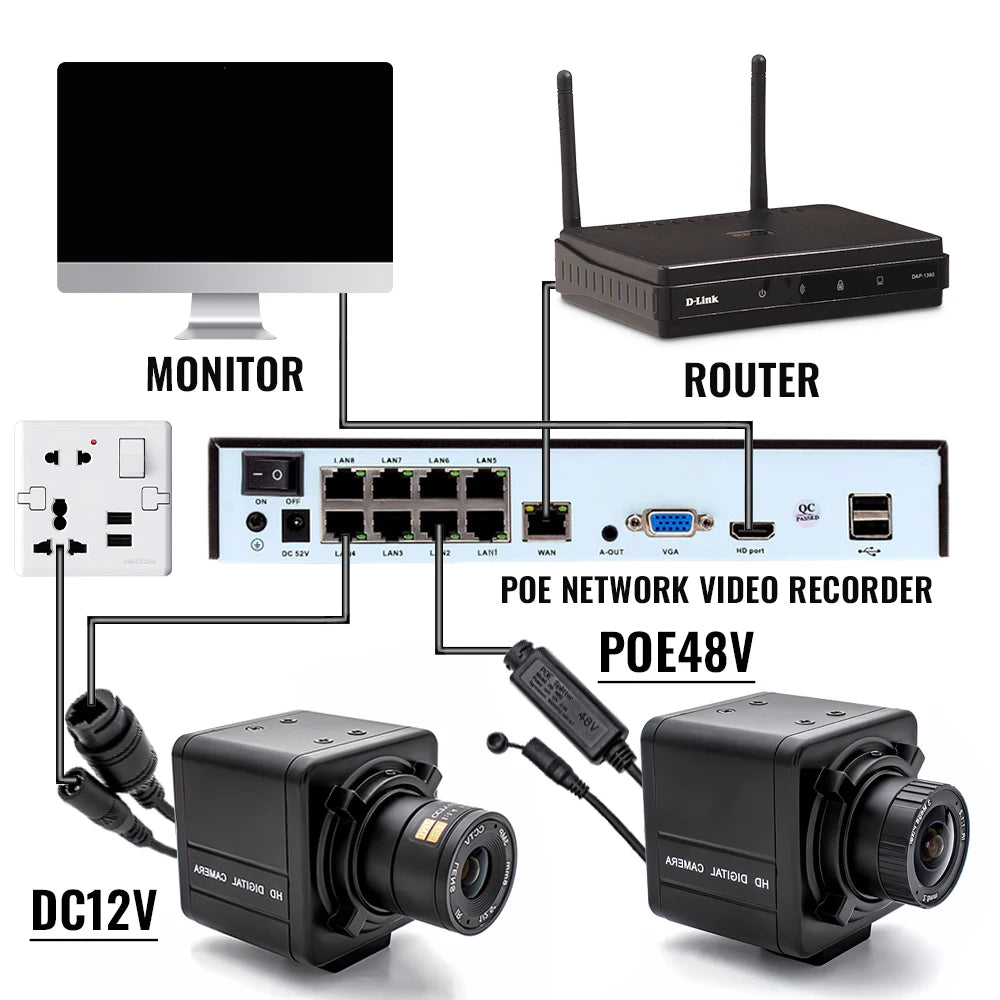

1. Not included Power Adapter, Please contact customer service if you need Power Adapter.（you can choose 48V POE to power on through Ethernet cable interface without the need for a power adapter)

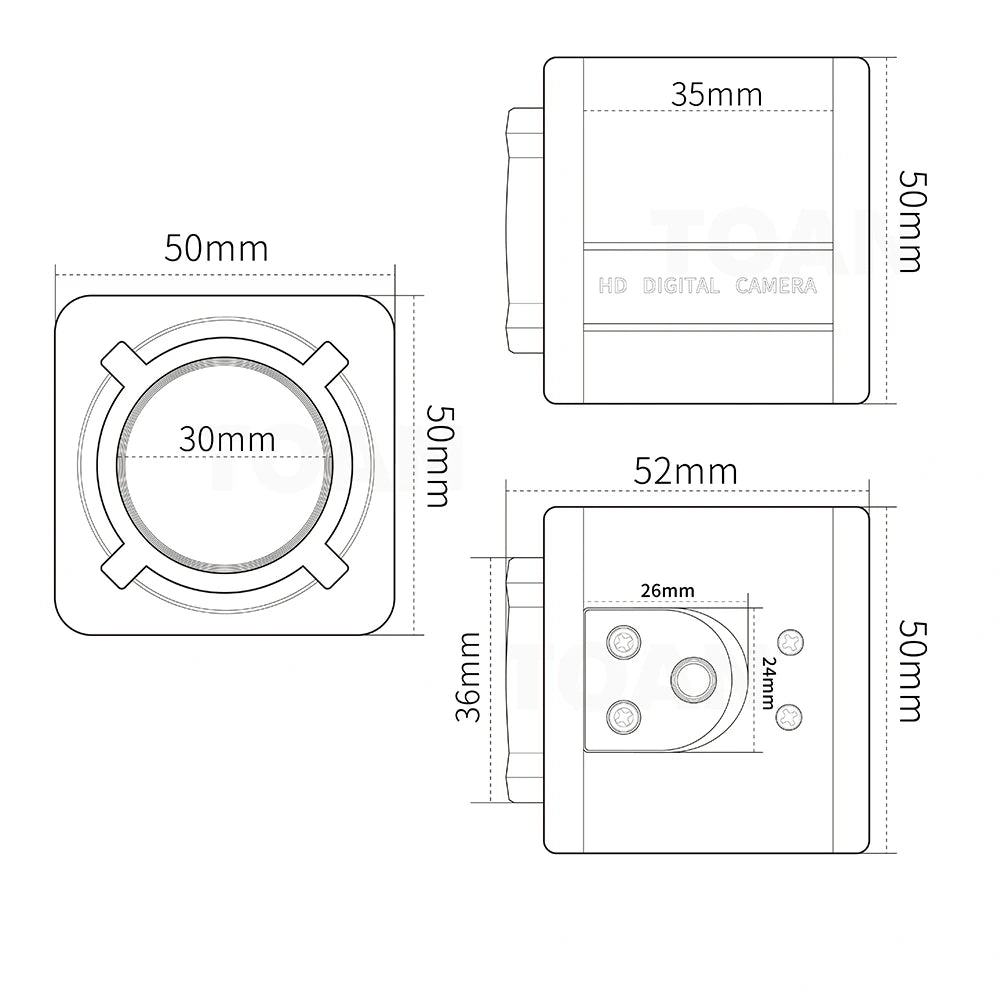

2.Due to manual measurement, please allow an error of 2-3mm

Experience our webcam, featuring high frame rates, excellent low-light performance, and optional lenses to ensure clear and detailed images. Its ultra-compact design is perfect for various embedded applications, elevating your visual experience to the next level!

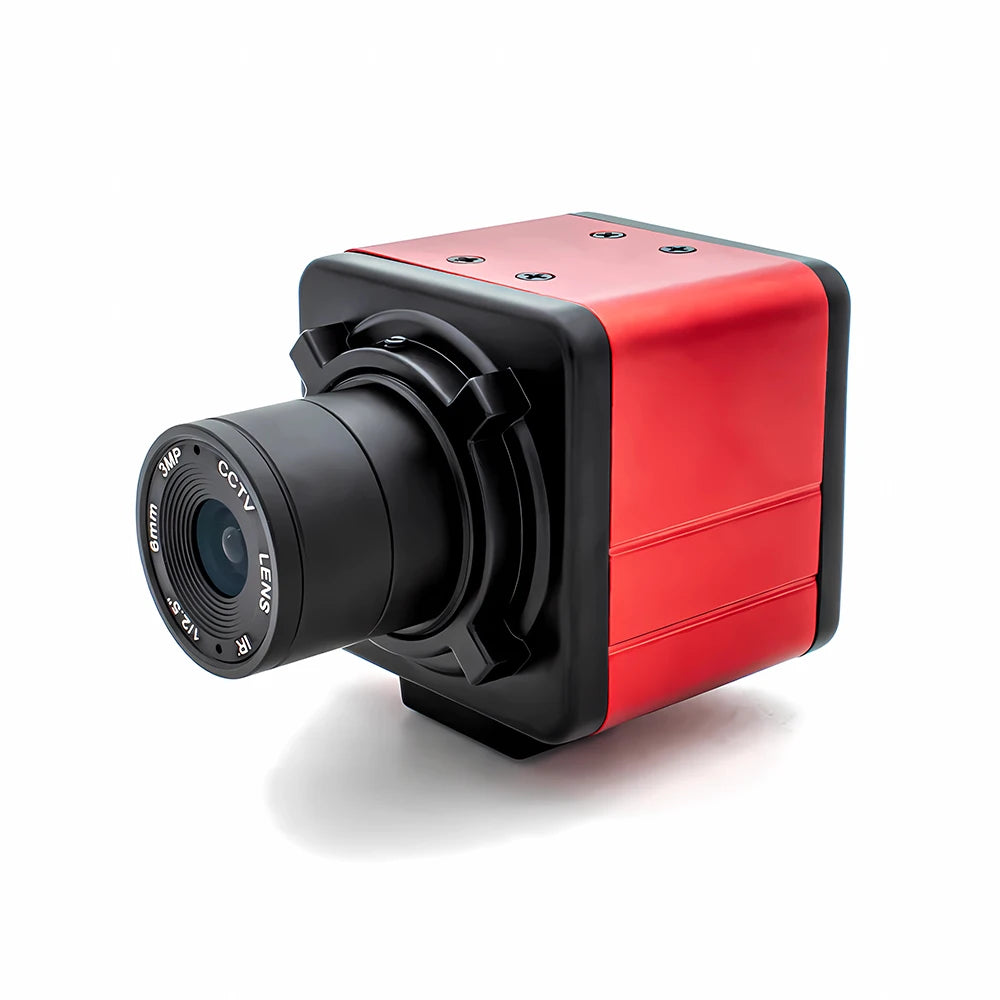

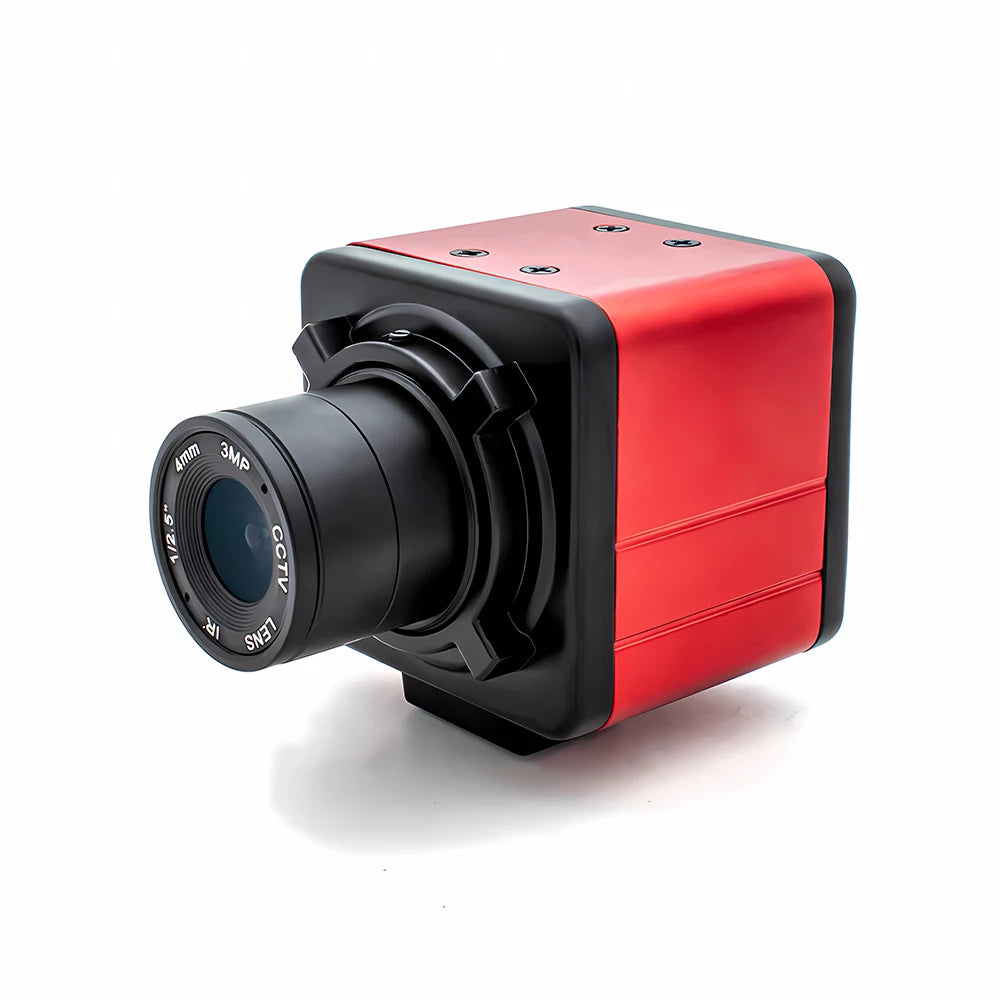

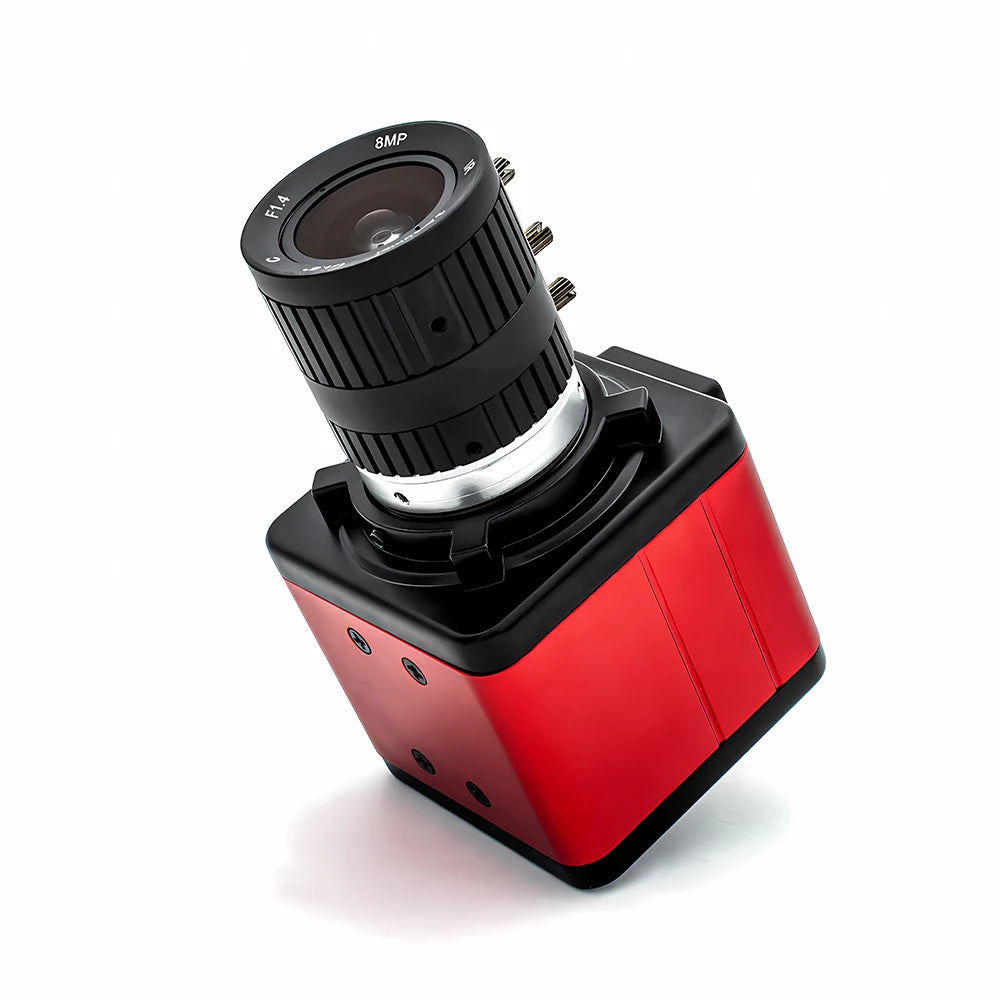

1.High quality 3/4/5/8MP HD IP Camera

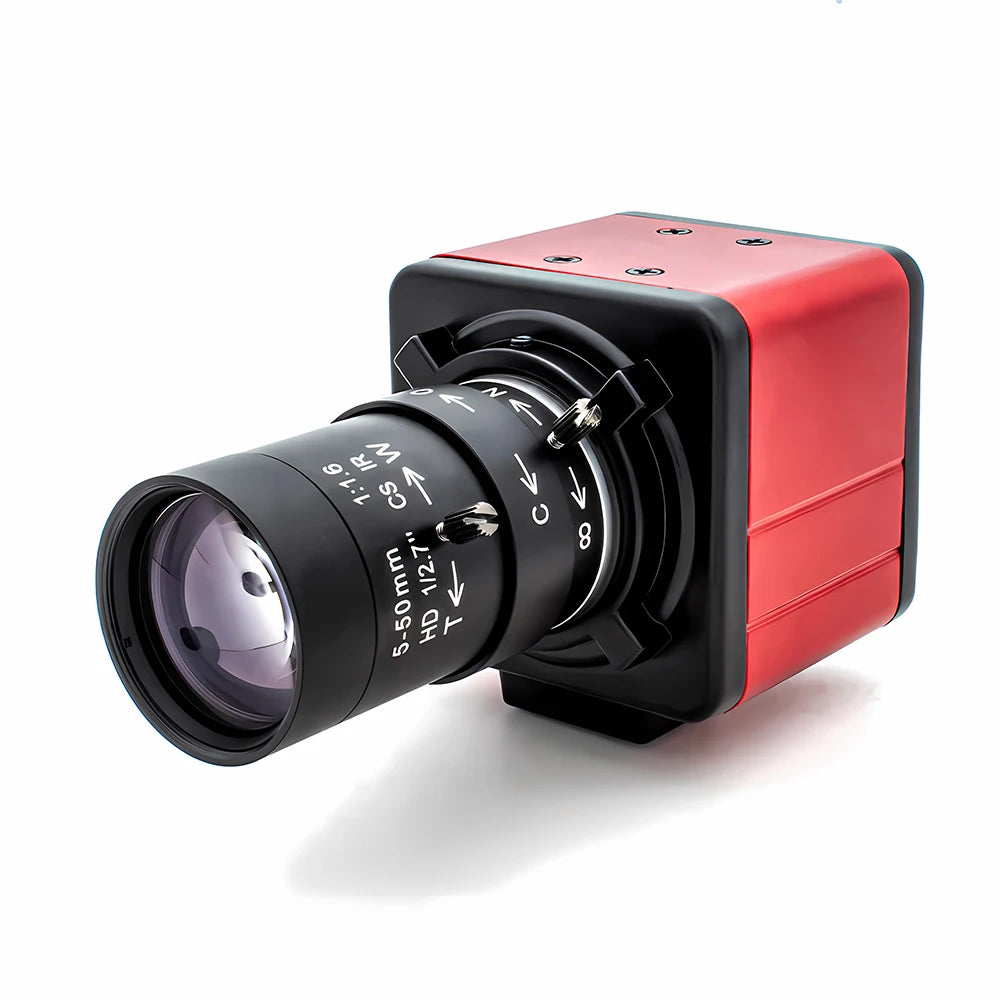

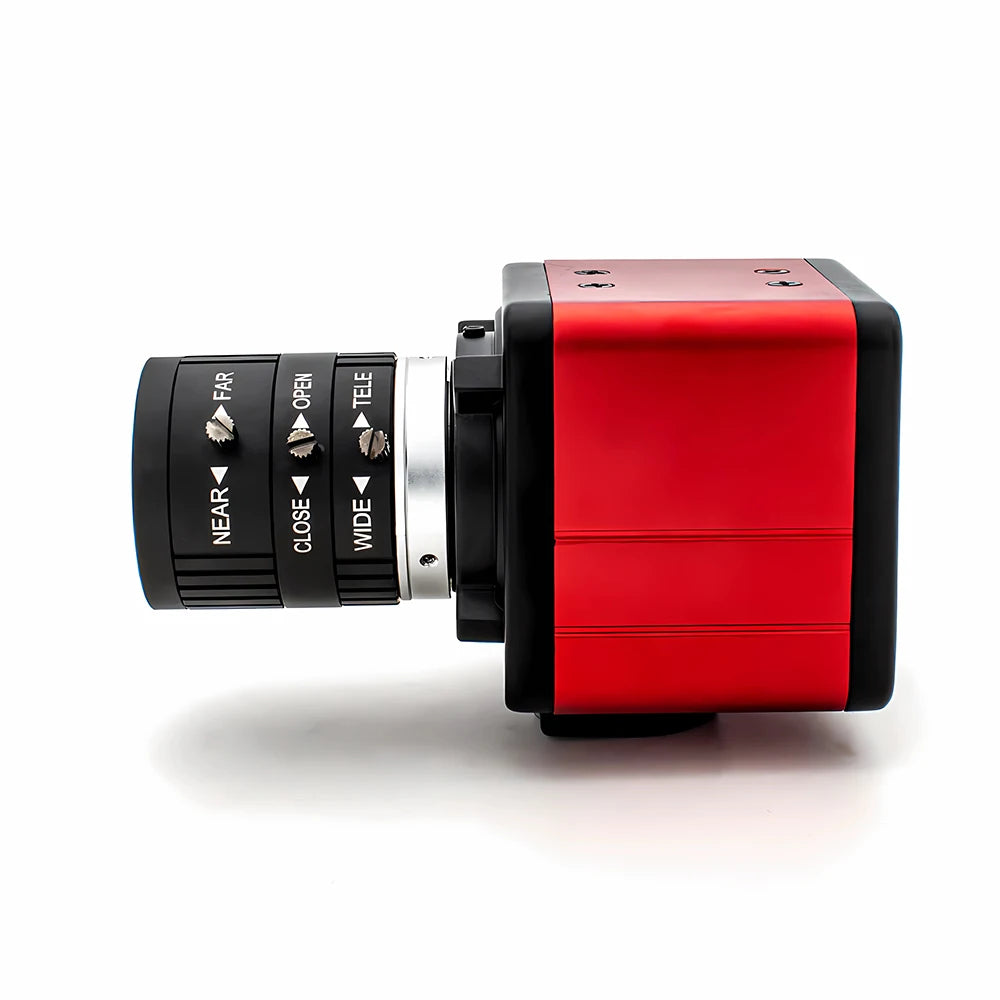

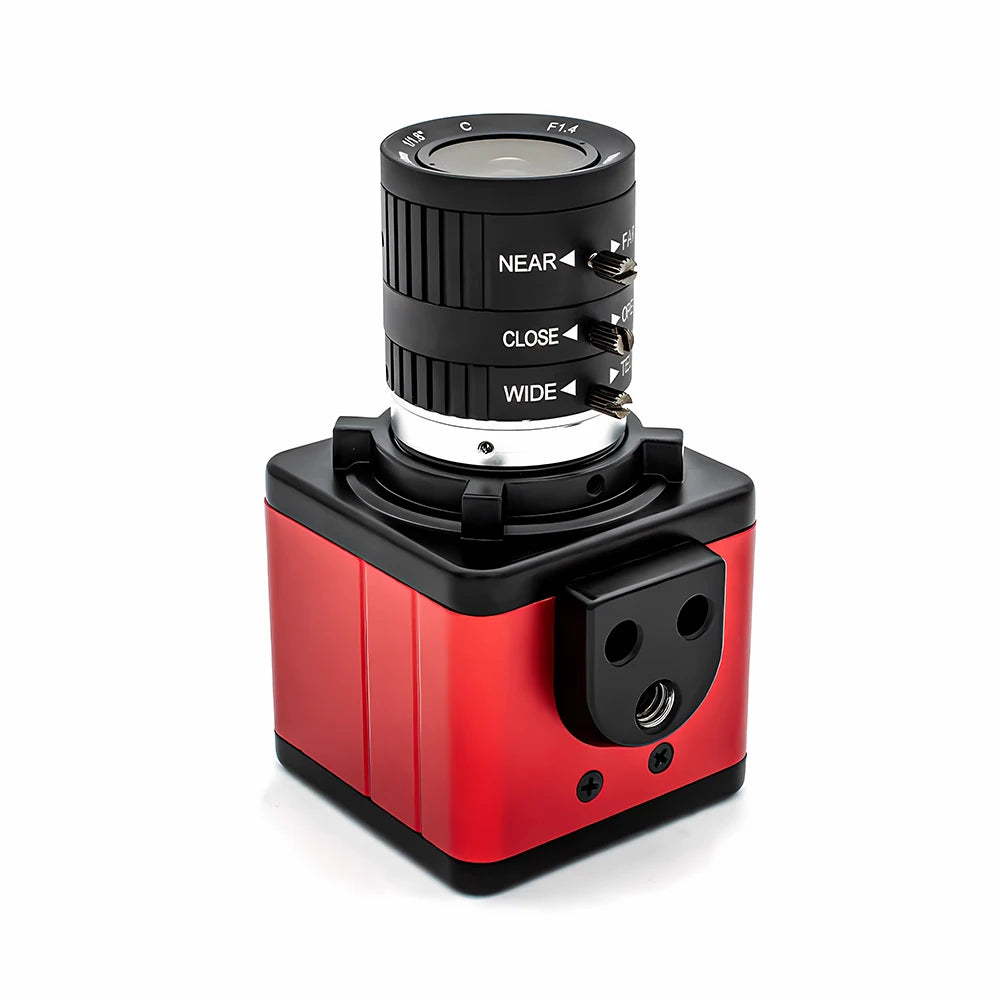

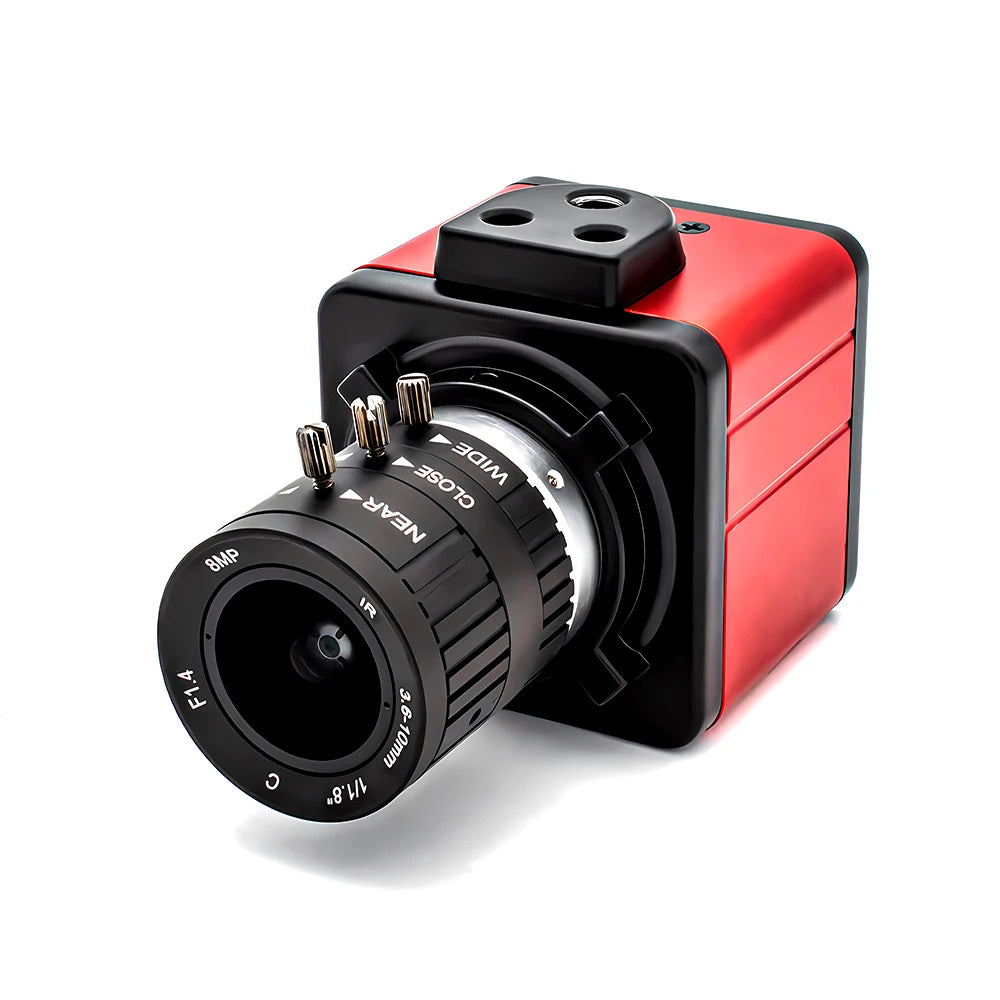

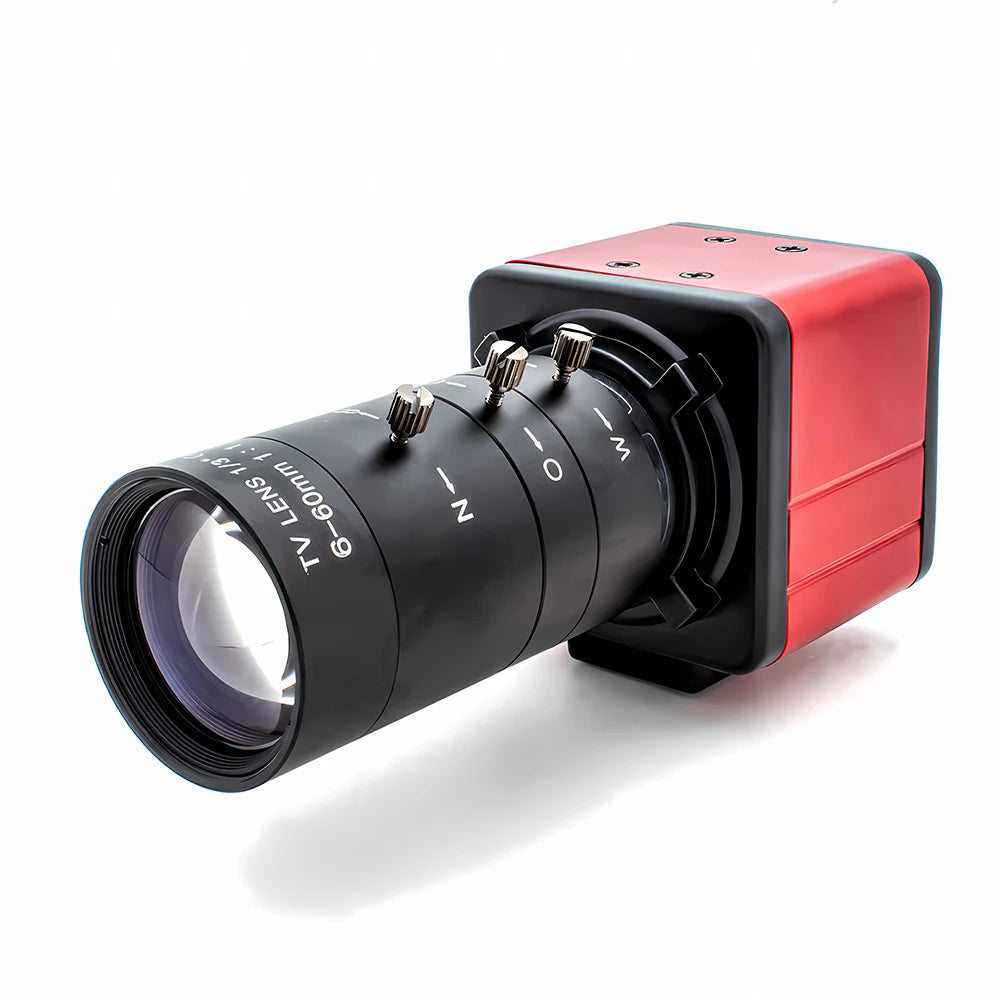

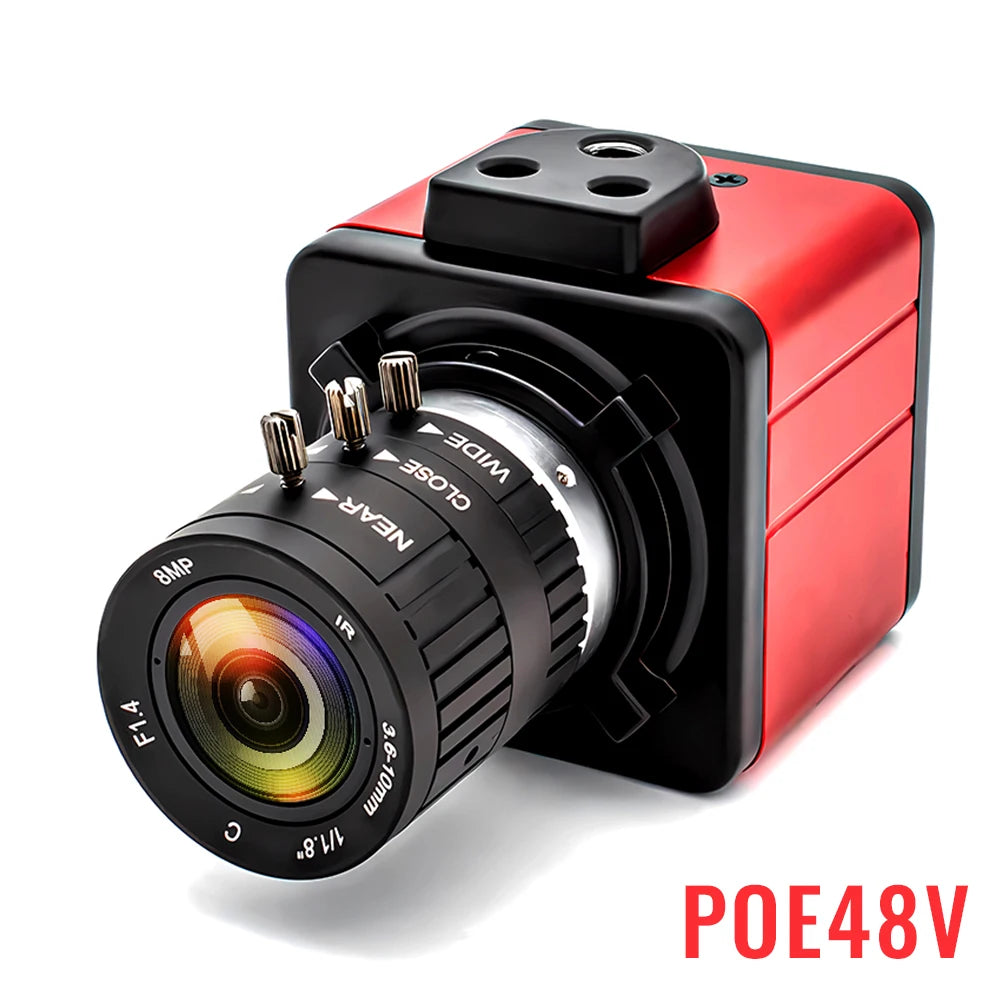

2.2.8-12mm/3.6-10mm/5-50mm/6-60mm/5-100mm Lens can choose

3.High frame rate MJPG– deliver 25fps in 2560x1440 resolution, 25fps in 1920X1080 resolution.

4.CMOS Sensor for high quality image and low power consumption.

5.Super small outline and thin profile for embedded applications.

6.high pixel technology for sharp image and accurate color reproduction.

7.low light performance – ideal for any lighting condition.

-3/4/5/8MP high-definition resolution, low illumination, clear and delicate images;
-Supports 2D/3D noise reduction and digital wide dynamic function;
-Advanced H.265+(compatible with H.265/H.264) video compression technology, ultra-low bit rate, high-definition image quality;
-Supports ONVIF protocol and can access third-party backend/platforms;
-Support mobile monitoring (iOS, Android);
-Support multiple cloud technologies, achieve network penetration, front-end and back-end docking, and push alarm information to mobile phones and other functions;

About RTSP

Address stream:

Enter the network URL in Please enter network URL:

rtsp://10.6.3.57:554/user=admin&password=&channel=1&stream=0.sdp?
10.6.3.57  This is the IP of the connected device

:554 This is the port number of the RTSP service, which can be changed in the device's network service

user=admin This is the login user name for the device

password= Password blank

channel=1 First channel

stream=0.sdp？Main code stream

stream=1.sdp？Auxiliary code stream

rtsp://192.168.1.10:554/user= admin&password=&channel=1&stream=0.sdp?

rtsp://10.6.3.57:554/user=admin&password=&channel=1&stream=0.sdp?

10.6.3.57 is the device IP address

:554 is RTSP port，can reset in device network service

user=admin is device user’s name

password= no pass word

channel=1 refer to Channel No.1

stream=0.sdp？ mainstream

stream=1.sdp？ substream

About computer operation and use

Make sure the camera is connected to the power supply and network

(the signal light flashes to prove that everything is normal)

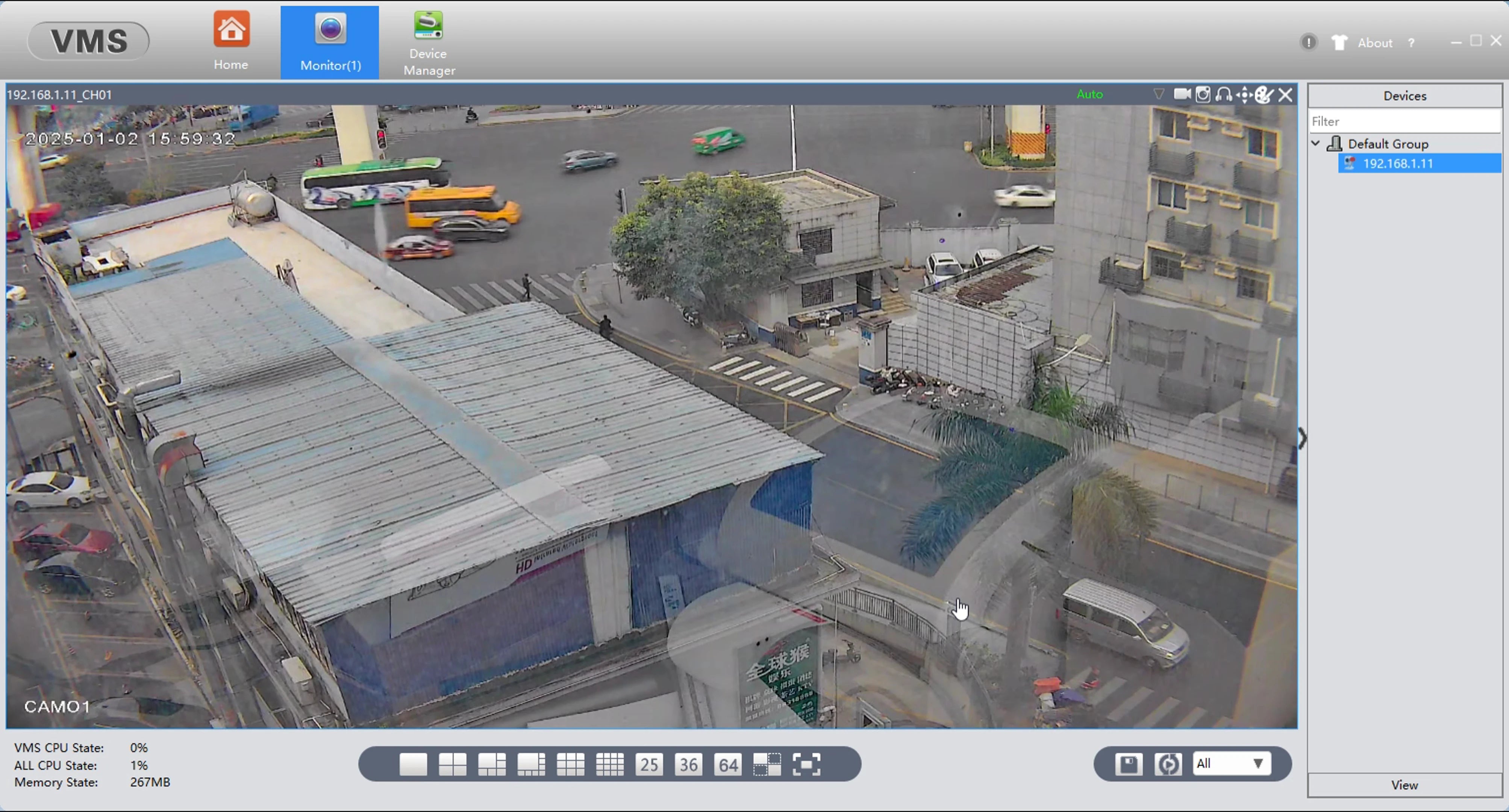

Step 1 : Install VMS

Contact customer service to obtain the installation package.

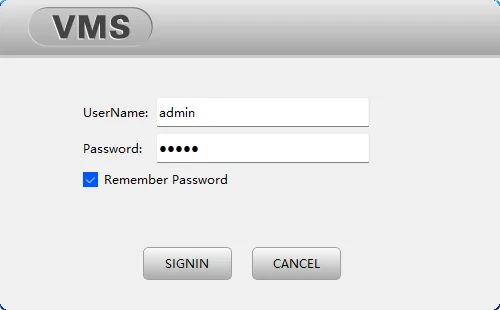

Step 2: Login VMS

UserName: admin,Password:admin

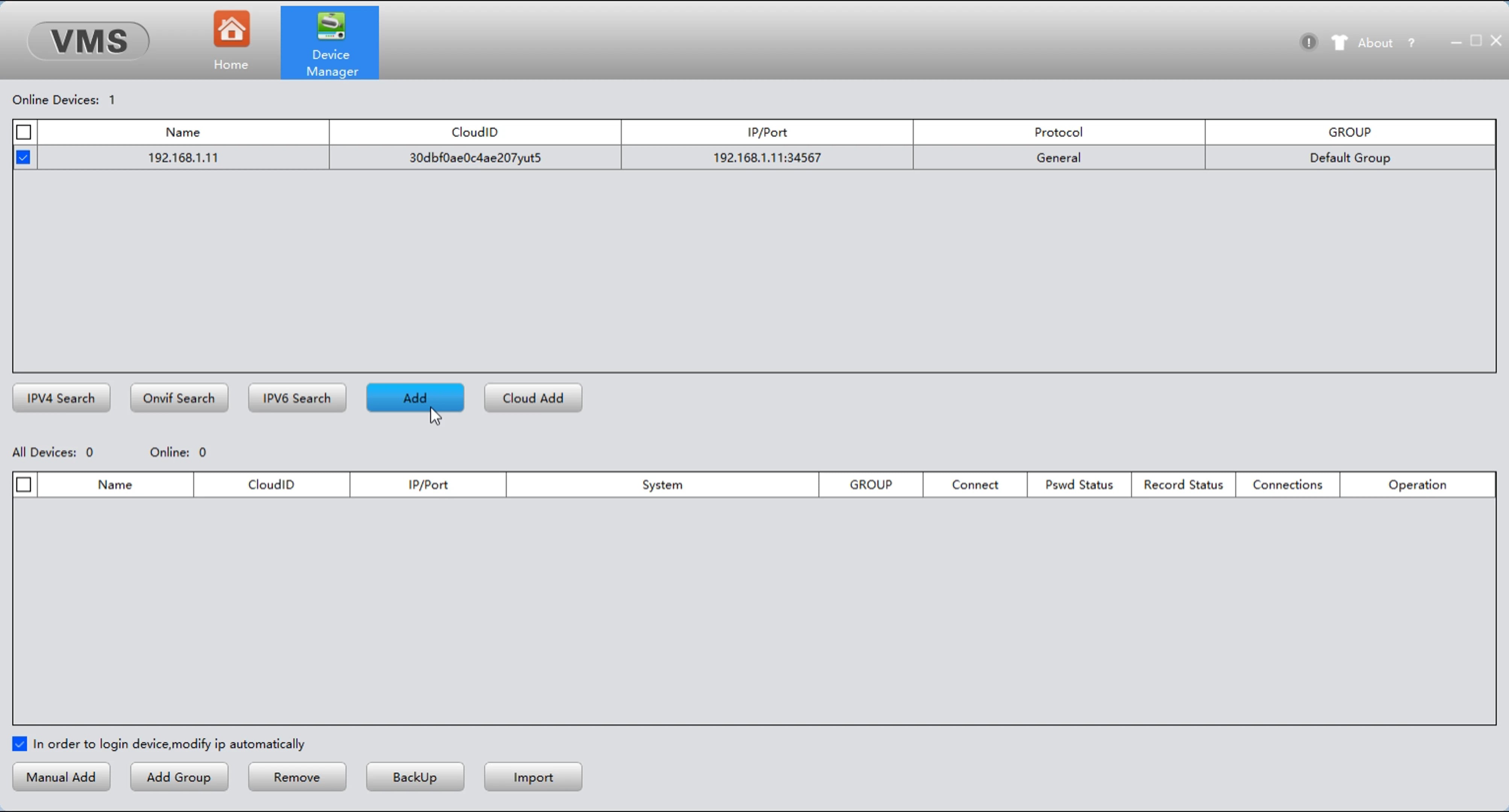

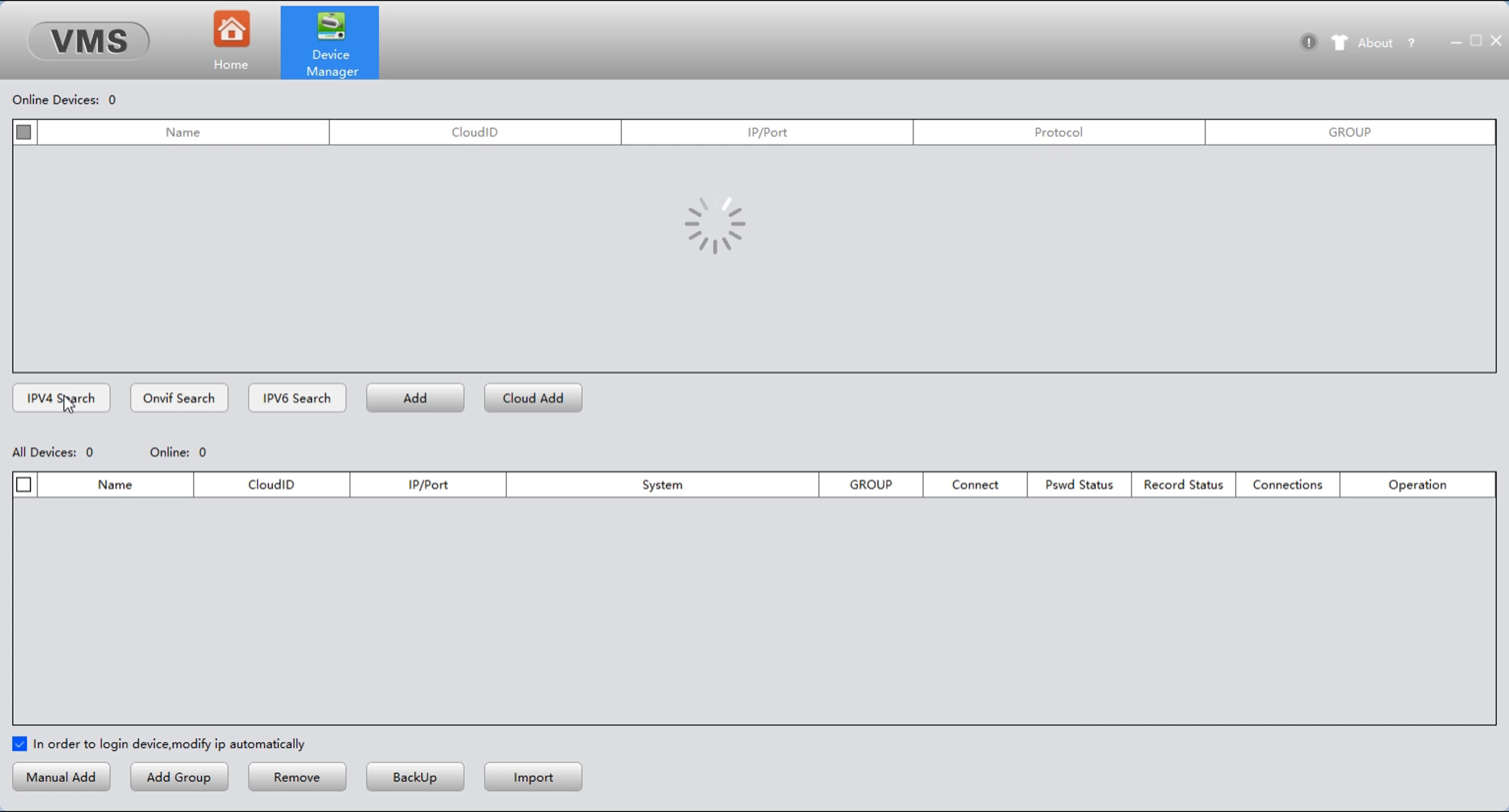

Step 3: Find your camera and add

APP download: Search XMEye in Apple Store
